Rear Compartment Lid Replacement

Courtesy of GENERAL MOTORS COMPANY

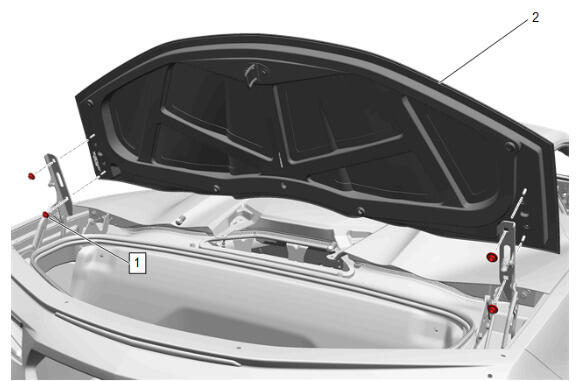

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Rear Compartment Lid Nut [4x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Rear Compartment Lid Procedure With the aid of an assistant, remove the rear compartment lid. Rear Compartment Lid - Adjust - Rear Compartment Lid Adjustment

Callout

Component Name

Rear Compartment Lid Nut [4x]

CAUTION:

Tighten
22 N.m (16 lb ft)

Rear Compartment Lid

Procedure
