Rear Compartment Lid Hinge Replacement
NOTE:

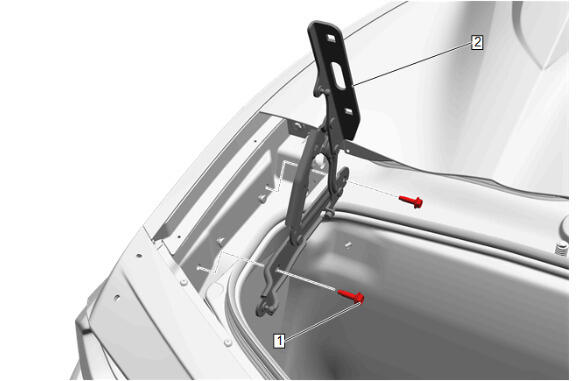

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Compartment Lid Replacement |
|
| 1 | Rear Compartment Lid Hinge Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 2 |
NOTE:
Rear Compartment Lid HingeIf replacing the rear compartment lid hinge, the new hinge will need to be drilled using 11mm drill prior to instillation. Use dimpled locations marked on the new hinge. |
