Rear Compartment Lid Adjustment
- Rear Compartment Lid Hinge Nut - Loosen [4x]

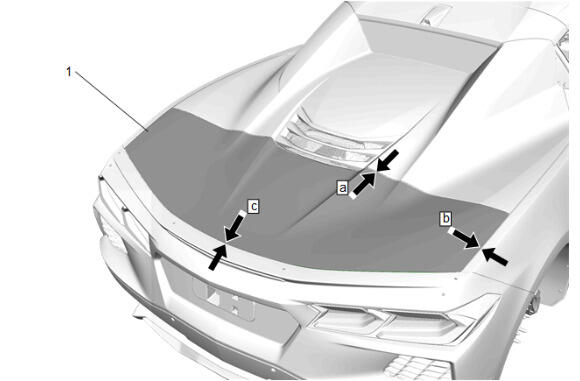

Adjust the rear compartment lid in order to obtain an even gap between the lid and the folding top stowage compartment lid, quarter outer panel, and the rear bumper fascia and so that the lid is flush with the folding top stowage compartment lid, quarter outer panel, and the rear bumper fascia.
- Rear compartment lid to folding top stowage compartment lid (a) 4.5 mm ± 1.0 mm (0.17 in ± 0.03 in)
- Rear compartment lid to rear quarter outer panel (b) 3.5 mm ± 1.25 mm (0.14 in ± 0.05 in)
- Rear compartment lid to rear bumper fascia (c) 4.0 mm ±.1.25 mm (0.16 in ± 0.05 in)
- Rear Compartment Lid Hinge Nut - Tighten [4x] 22 N.m (16 lb ft)
- Adjust the rear compartment lid bumpers as necessary.
CAUTION:
Refer to Fastener Caution .
