Hood Replacement

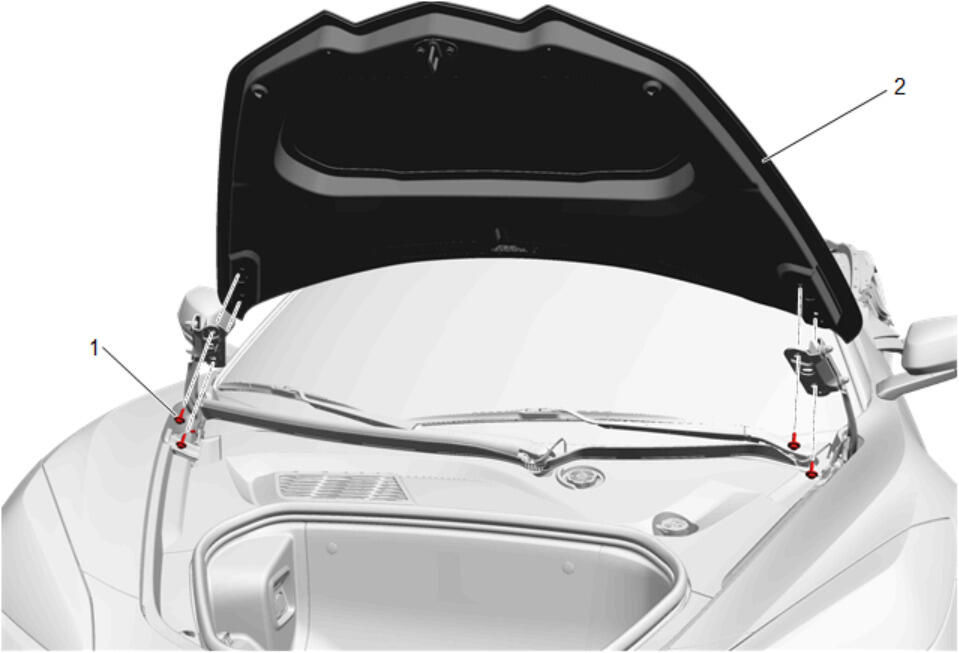

GM5361651Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name
1 Hood Hinge Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Hood

Procedure

  1. With the aid of an assistant, remove the hood.
  2. Transfer components as necessary.
  3. Adjust the hood as necessary.
