Hood Primary and Secondary Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

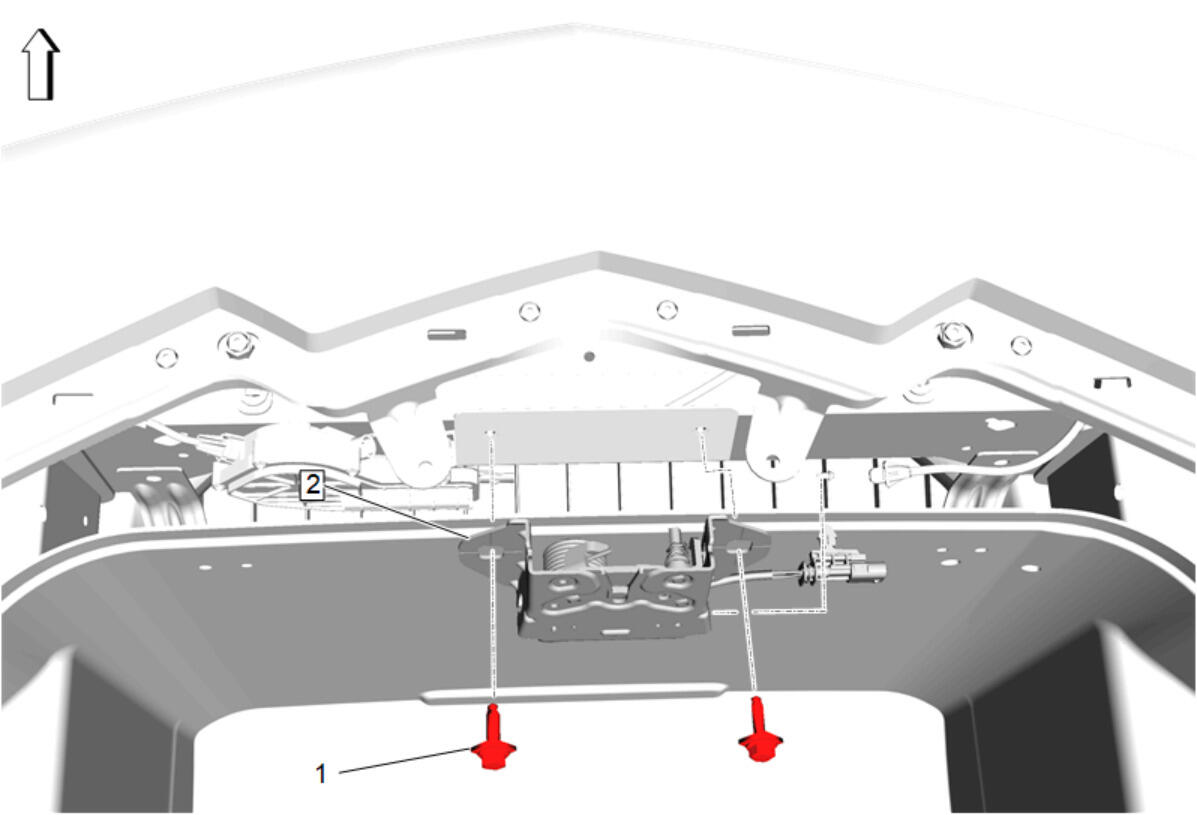

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Compartment Front Sight Shield Replacement Mark the location of the hood primary and secondary latch before removing the bolts with a grease pencil.
1	Hood Primary and Secondary Latch Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Hood Primary and Secondary Latch Procedure Disconnect the hood secondary latch cable from the hood primary and secondary latch. Disconnect the electrical connector. Align the hood primary and secondary latch if necessary.

Callout

Component Name

Preliminary Procedures

Front Compartment Front Sight Shield Replacement
Mark the location of the hood primary and secondary latch before removing the bolts with a grease pencil.

Hood Primary and Secondary Latch Bolt [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Hood Primary and Secondary Latch

Procedure

Disconnect the hood secondary latch cable from the hood primary and secondary latch.
Disconnect the electrical connector.
Align the hood primary and secondary latch if necessary.
