Hood Primary Latch Striker Replacement

Courtesy of GENERAL MOTORS COMPANY

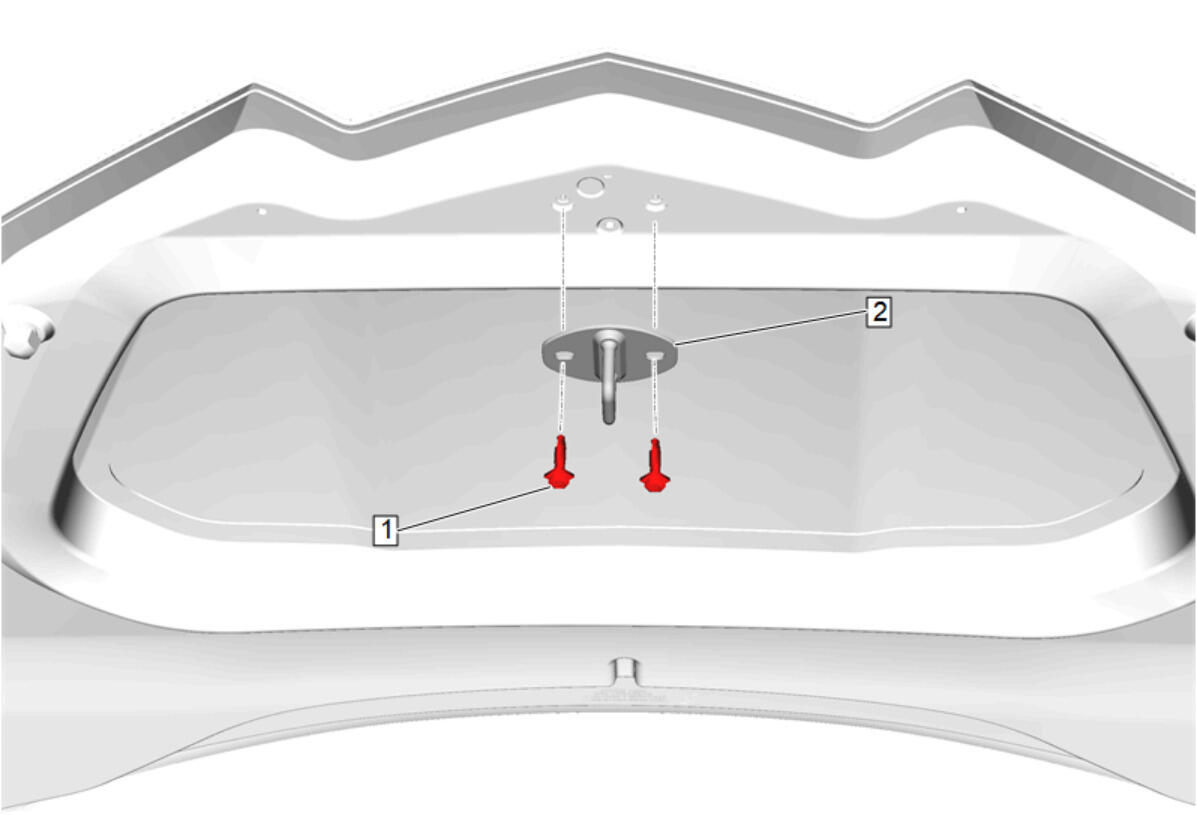

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Open the hood.
1	Hood Primary Latch Striker Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Hood Primary Latch Striker Procedure Align the hood primary latch striker if necessary. Close the hood.

Callout

Component Name

Preliminary Procedure
Open the hood.

Hood Primary Latch Striker Bolt [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Hood Primary Latch Striker

Procedure
