Hood Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

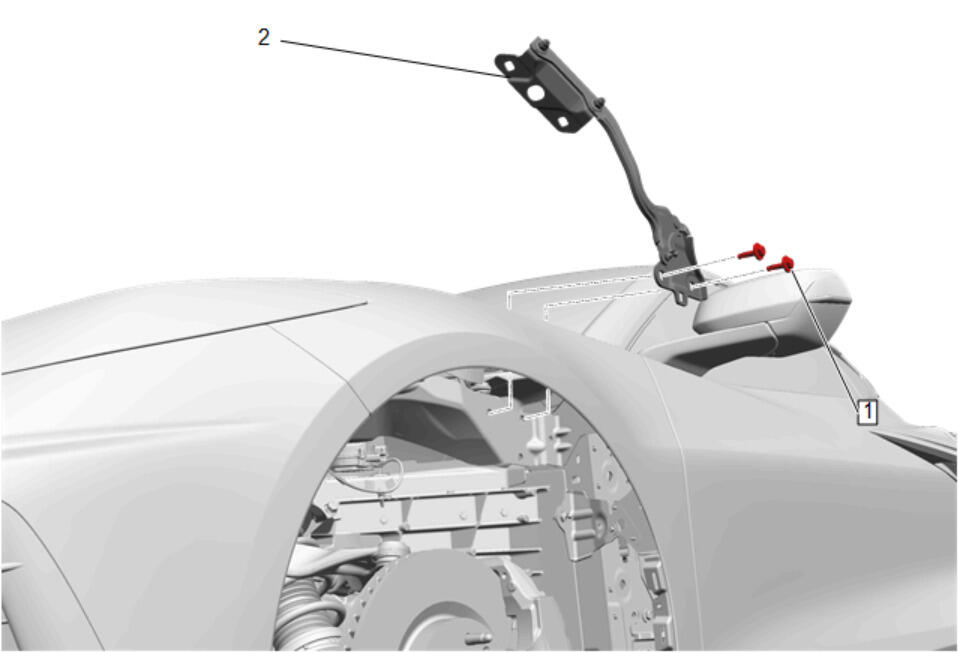

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Hood Replacement Hood Strut Replacement
1	Hood Hinge Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 35 N.m (26 lb ft)
2	Hood Hinge

Callout

Component Name

Preliminary Procedures

Hood Hinge Bolt [2x]

CAUTION:

Tighten
35 N.m (26 lb ft)

Hood Hinge
