Hood Adjustment
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

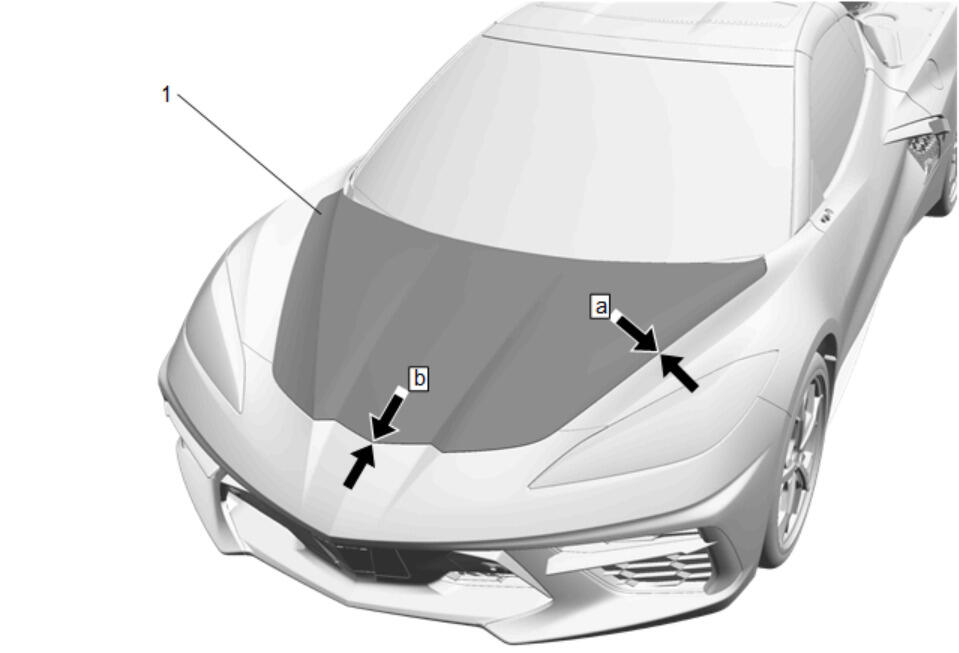

Callouts in the following chart represent components shown in graphic above.
| Callout |
Component Name |
| 1 |
Hood Procedure
- Loosen the 4 hood hinge bolts.
- Adjust the hood in order to obtain an even gap on both sides between the hood and the fenders, and the front bumper fascia.
- Tighten the 4 hood hinge nuts. Hood Replacement
- Loosen and adjust the hood primary and secondary latch and the hood bumpers as necessary to obtain the adjustment. Hood Primary and Secondary Latch Replacement
Adjustment Procedure
- Hood to front fender (a) 3.0 mm ± 1 mm (0.12 in ± 0.04 in)
- Hood to front bumper fascia (b) 3.0 mm ± 1.5 mm (0.12 in ± 0.06 in)
|
