Fuel Tank Filler Pipe Housing Replacement

Courtesy of GENERAL MOTORS COMPANY

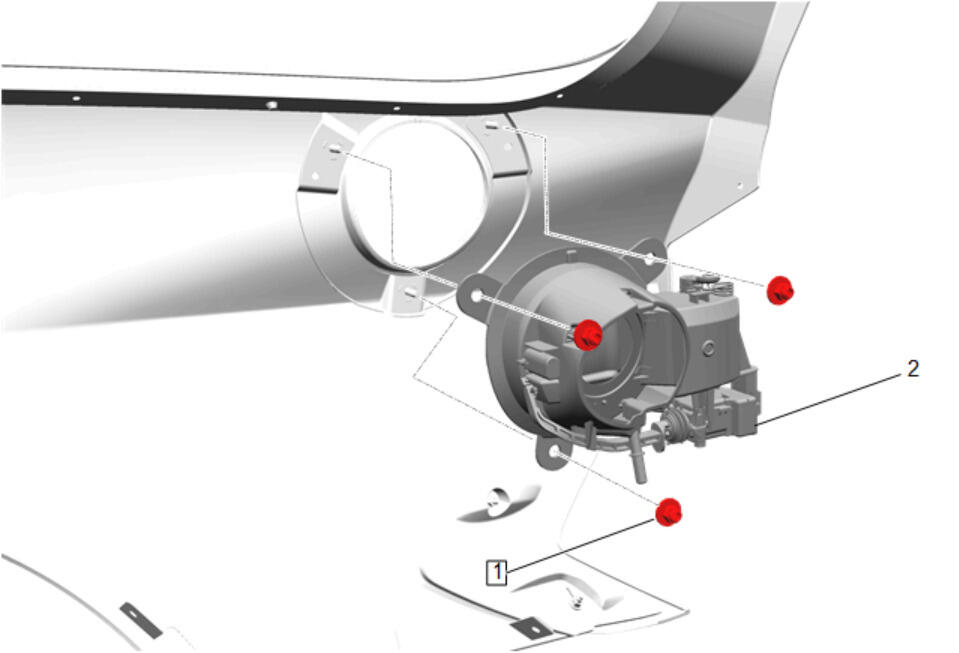

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Fuel Tank Filler Door Replacement Quarter Outer Panel Replacement - Left Side
1	Fuel Tank Filler Pipe Housing Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Fuel Tank Filler Pipe Housing NOTE: When replacing the fuel tank filler pipe housing with a new housing, a new label is required to be added to the new filler pipe housing Procedure Disconnect the electrical connector. Ensure the fuel tank filler pipe housing and seal is full seated to the filler pipe.

Callout

Component Name

Preliminary Procedures

Fuel Tank Filler Pipe Housing Nut [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Fuel Tank Filler Pipe Housing

NOTE:

When replacing the fuel tank filler pipe housing with a new housing, a new label is required to be added to the new filler pipe housing

Procedure

Disconnect the electrical connector.
Ensure the fuel tank filler pipe housing and seal is full seated to the filler pipe.
