Air Cleaner Access Cover Replacement (Convertible)

Courtesy of GENERAL MOTORS COMPANY

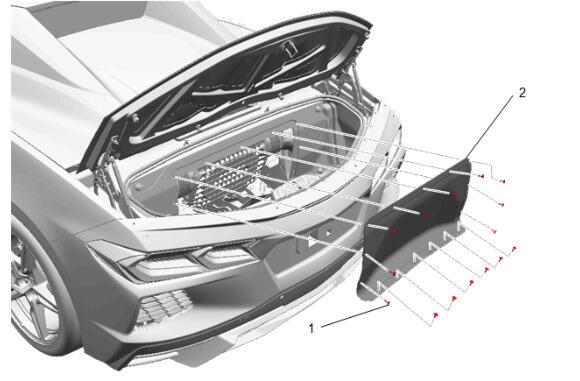

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Rear Compartment Front Lower Partition Replacement (convertible)
1	Body Rear Compartment Bolt [15x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Air Cleaner Access Cover
