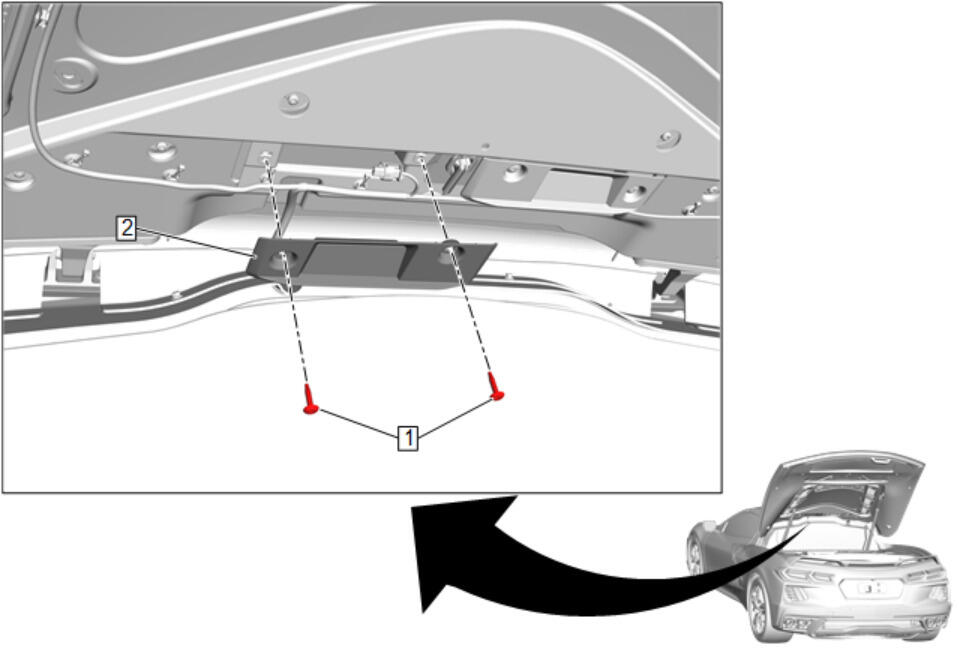

Underhood Lamp Replacement
| Callout | Component Name |
|---|---|
| 1 | Underhood Lamp Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Underhood Lamp Procedure Disconnect the electrical connector. |
| Callout | Component Name |
|---|---|
| 1 | Underhood Lamp Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Underhood Lamp Procedure Disconnect the electrical connector. |
