Removal Procedure
Remove the left body hinge pillar garnish molding (1). Body Hinge Pillar Garnish Molding Replacement
Remove the left windshield garnish molding (2). Windshield Garnish Molding Replacement
Remove the left instrument panel trim pad radio speaker opening cover (1). Instrument Panel Trim Pad Radio Speaker Opening Cover Replacement
Radio Front Speaker Grille Molding (2) - Remove - Radio Front Speaker Grille Molding Replacement

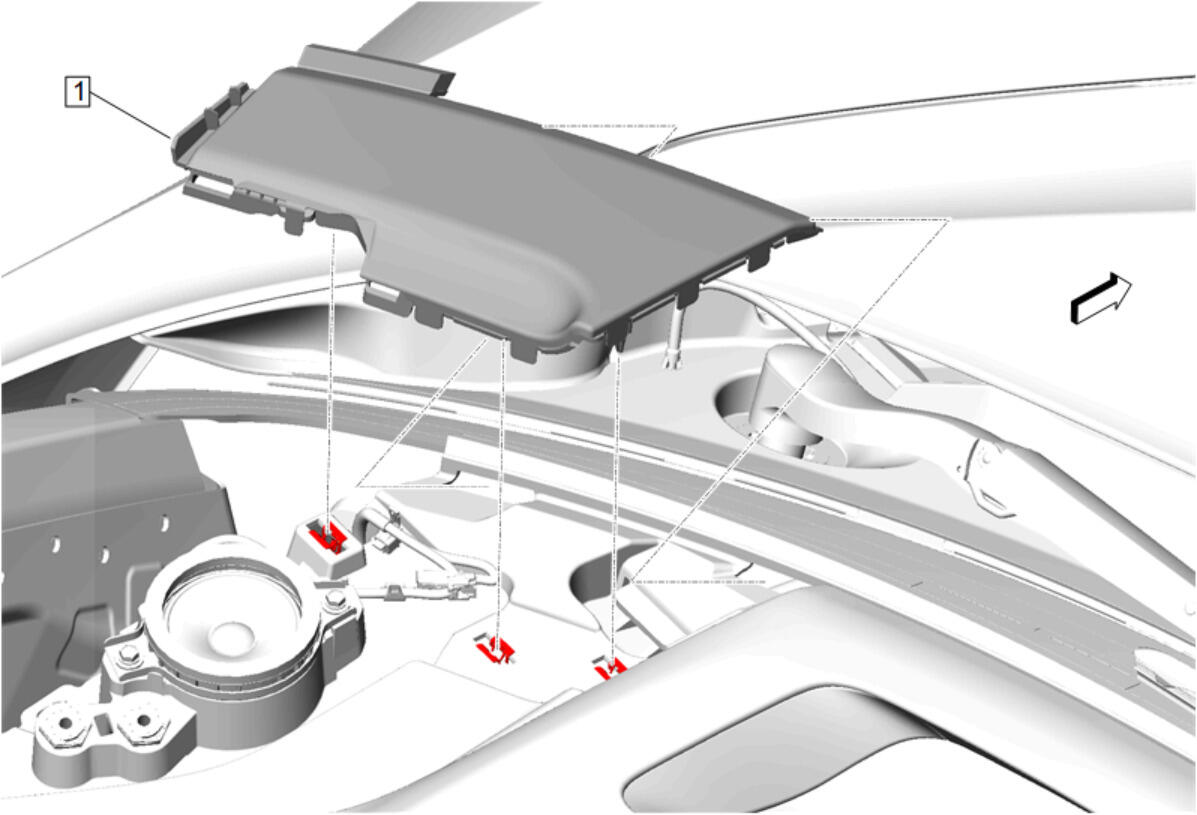

Release the retainer clips with a suitable trim tool and pull the instrument upper trim panel cover (1) rearward to remove.
