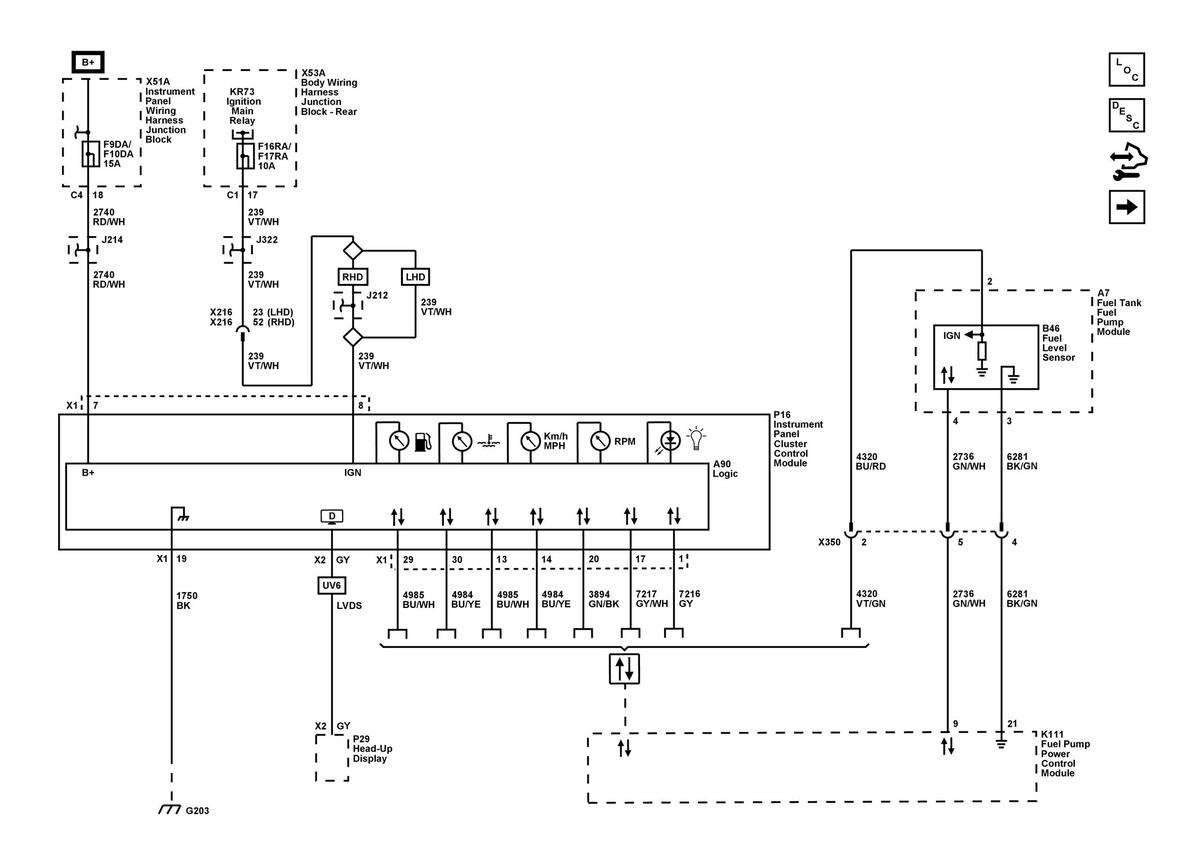

Home >> Chevrolet >> 2022 >> Corvette 2D Convertible >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Wiring Schematics >> Power, Ground, Gauges, and Serial Data
