Special Tools

WARNING: This page is about a different variant/trim than selected.

Equivalent regional tools: Special Tools

Courtesy of GENERAL MOTORS COMPANY

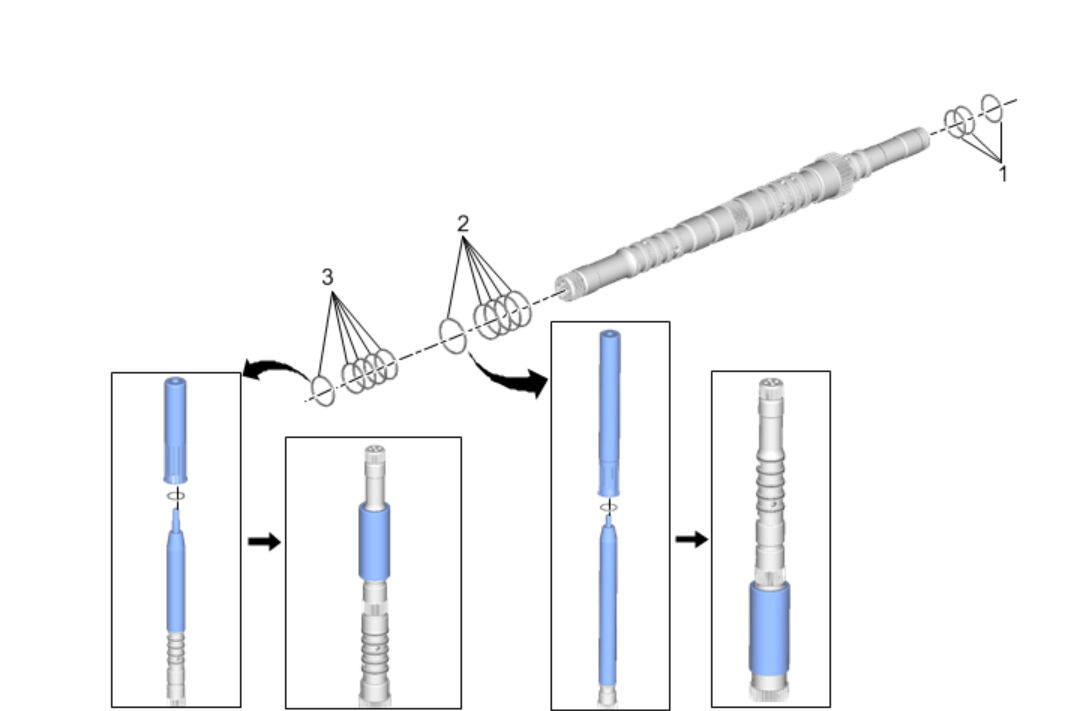

Turbine Shaft Seal (1) - Install NEW [3x]
Apply DT-36850 Transjel Lubricant prior to installing seals.
When installing the seals, movement of the seal pushing tool should be one continuous movement down the shaft, and should not last more than 2 seconds to prevent overstretching of the seals.
Set the DT-52701 - 1 seal installer to the depth for each seal, then using DT-52701 - 2 seal installer push the seal into position.
Turbine Shaft Seal (2) - Install NEW [5x]

NOTE:

Seal robustness may be improved if the sizer is left on until the shaft is installed in the Triple Clutch Housing.

After all seals have been installed, install the DT-52701 - 3 seal sizer over all of the seals as shown, should stay installed for at least 5 minutes before removed.
Apply DT-36850 Transjel Lubricant prior to installing seals.
When installing the seals, movement of the seal pushing tool should be one continuous movement down the shaft, and should not last more than 2 seconds to prevent overstretching of the seals.
Set the DT-52702 - 1 seal installer to the depth for each seal, then using DT-52702 - 2 seal installer push the seal into position.
Turbine Shaft Seal (3) - Install NEW [5x]

NOTE:

Seal robustness may be improved if the sizer is left on until the shaft is installed in the Triple Clutch Housing.

After all seals have been installed, install the DT-52702 - 3 seal sizer over all of the seals as shown, should stay installed for at least 5 minutes before removed.
