Control Valve Body Assembly Bolt Removal

WARNING: This page is about a different variant/trim than selected.

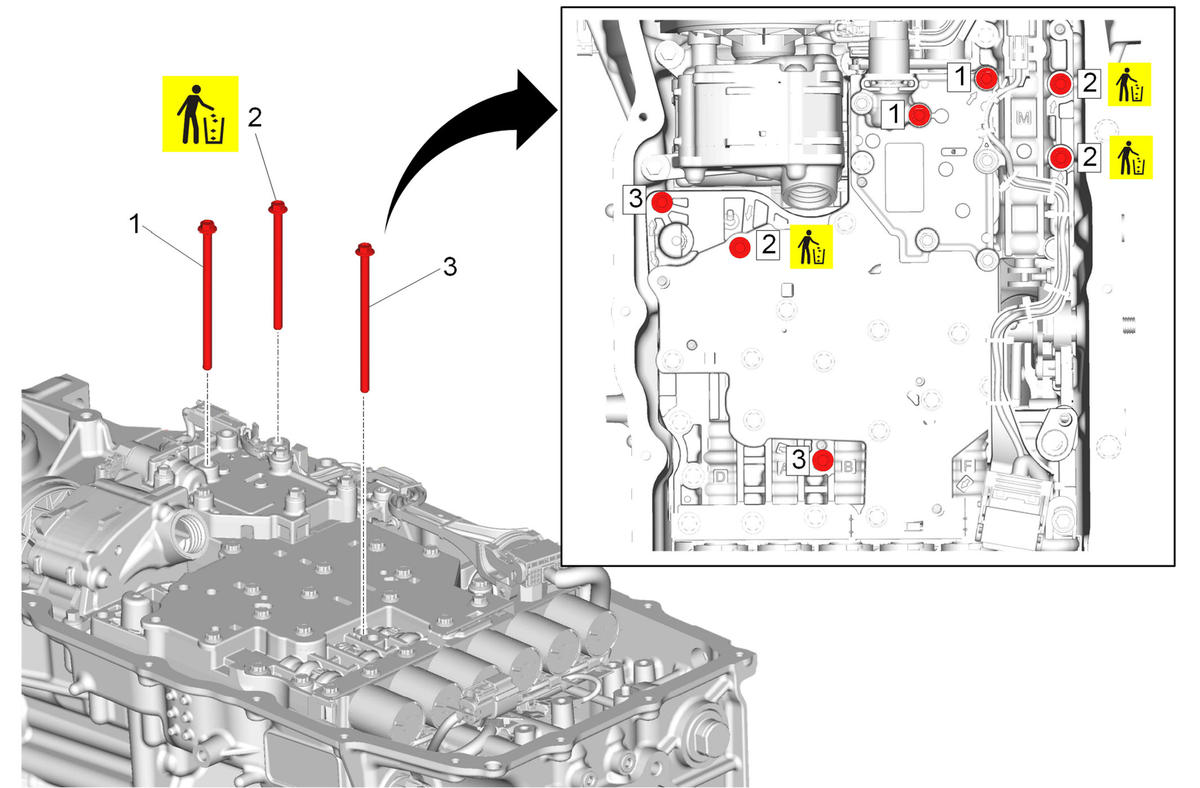

GM5087531Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Control Valve Body Assembly Bolt Removal

Callout Component Name
1 Control Valve Solenoid Body Bolt [2x]

Procedure

  • The bolts are marked by arrows in the valve body casting.
2 Control Valve Solenoid Body Bolt [3x]

Procedure

  • The bolts are marked by arrows in the valve body casting.
  • Remove and DISCARD the bolts, they are not reusable.
3 Control Valve Solenoid Body Bolt [2x]

Procedure

  • The bolts are marked by arrows in the valve body casting.
