Special Tools

WARNING: This page is about a different variant/trim than selected.

DT-51892 Press Tool

Equivalent regional tools: Special Tools

Courtesy of GENERAL MOTORS COMPANY

1-3-5-6-7-8-9 Clutch Piston Seal (1) - Install NEW
1-3-5-6-7-8-9 Clutch Piston Dam Seal (2) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

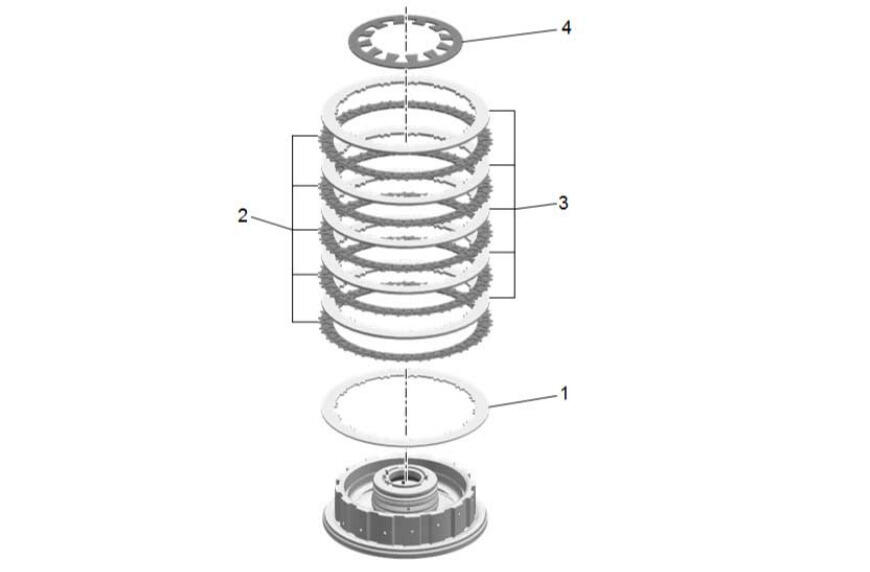

1-3-5-6-7-8-9 Clutch Backing Plate-Selective (1) - Install
1-3-5-6-7-8-9 Fiber Clutch Plate (2) - Install [5x]
1-3-5-6-7-8-9 Steel Clutch Plate (3) - Install [5x]
1-3-5-6-7-8-9 Clutch Piston Return Spring (4) - Install
Courtesy of GENERAL MOTORS COMPANY

1-3-5-6-7-8-9 Clutch Piston Dam (1) - Install
1-3-5-6-7-8-9 Clutch Piston Dam Seal (2) - Install NEW
1-3-5-6-7-8-9 Clutch Piston (3) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

1-3-5-6-7-8-9 Clutch Piston Dam & 1-3-5-6-7-8-9 Clutch Piston (1) - Install
Using the DT-51892 Press Tool (2) and an arbor press, compress the piston just enough to install the 1-3-5-6-7-8-9 Clutch Piston Dam Retaining Ring (3).
1-3-5-6-7-8-9 Clutch Piston Dam Retaining Ring (3) - Install NEW
Select the proper backing plate. 1-3-5-6-7-8-9 Clutch Backing Plate Measurement
Courtesy of GENERAL MOTORS COMPANY

Turbine Shaft (1) - Install
Turbine Shaft Retaining Ring (2) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure proper orientation of bearing.

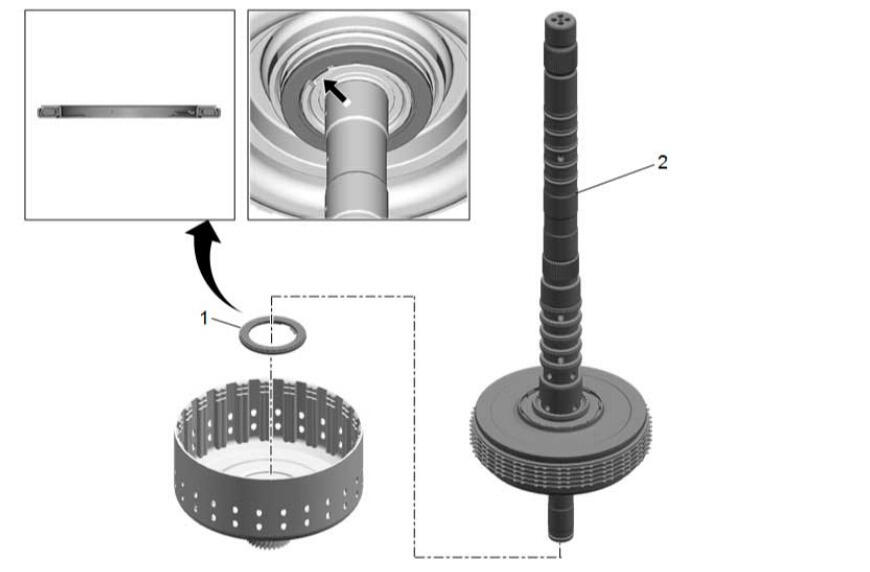

Output Sun Gear Thrust Bearing (1) - Install
Turbine Shaft & 1-3-5-6-7-8-9 Clutch Assembly (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Direct Overdrive Internal Gear Retaining Ring (1) - Install
Direct Overdrive Internal Gear (2) - Install
Direct Overdrive Internal Gear Retaining Ring (3) - Install

NOTE:

Ensure proper orientation of bearing.
