Supercharger and Components
WARNING: This page is about a different variant/trim than selected.

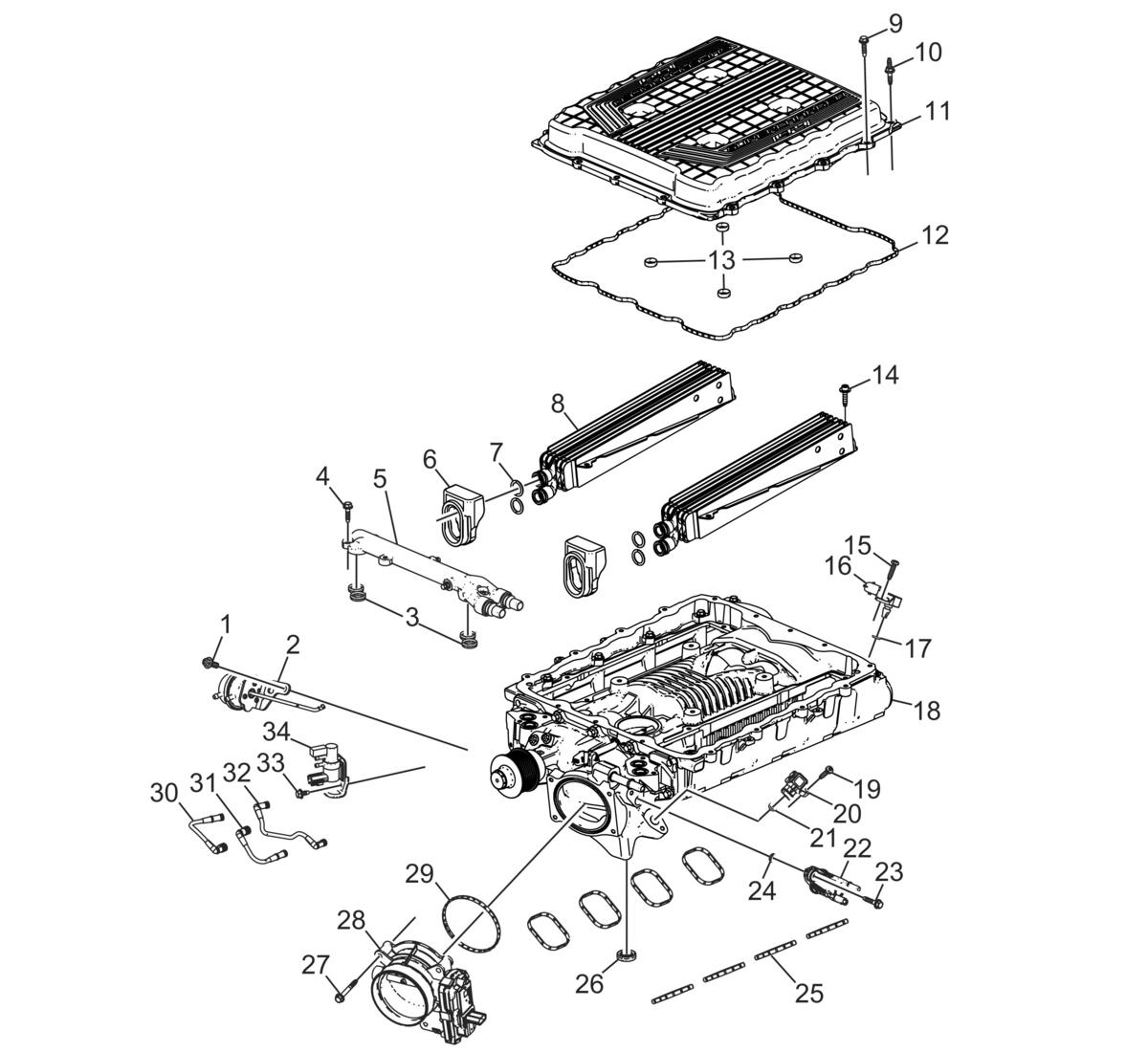

| Callout | Component Name |
|---|---|
| 1 | Supercharger Bypass Valve Actuator Bolt |
| 2 | Supercharger Bypass Valve Actuator |
| 3 | Supercharger Water Manifold Gasket |
| 4 | Charge Air Cooler Front Manifold Bolt |
| 5 | Charge Air Cooler Front Manifold |
| 6 | Charge Air Cooler Upper Insulator (Qty. 2) |
| 7 | Charge Air Cooler Pipe Seal (Qty. 4) |
| 8 | Intercooler Brick (Qty. 2) |
| 9 | Charge Air Cooler Cover Bolt |
| 10 | Charge Air Cooler Double Ended Stud |
| 11 | Charge Air Cooler Cover |
| 12 | Charge Air Cooler Housing Gasket |
| 13 | Charge Air Cooler Housing Gasket |
| 14 | Charge Air Cooler Brick Bolt (Qty. 6) |
| 15 | Inlet Air Pressure and Temperature Sensor Bolt |
| 16 | Inlet Air Pressure and Temperature Sensor |
| 17 | Inlet Air Pressure and Temperature Sensor Seal |
| 18 | Supercharger Assembly |
| 19 | Supercharger Air Outlet Pressure Sensor Bolt |
| 20 | Supercharger Air Outlet Pressure Sensor |
| 21 | Supercharger Air Outlet Pressure Sensor Seal |
| 22 | Evaporative Emission Canister Purge Valve |
| 23 | Evaporative Emission Canister Purge Valve Bolt |
| 24 | Evaporative Emission Canister Purge Valve Seal |
| 25 | Intake Manifold Gasket |
| 26 | PCV Port Gasket |
| 27 | Throttle Body Assembly Bolt |
| 28 | Throttle Body Assembly |
| 29 | Throttle Body Seal |
| 30 | Supercharger Bypass Valve Actuator Tube |
| 31 | Charged Air Bypass Valve Vacuum Tube |
| 32 | Charged Air Bypass Valve Tube |
| 33 | Charged Air Bypass Regulator Solenoid Valve Bolt |
| 34 | Charged Air Bypass Regulator Solenoid Valve |
