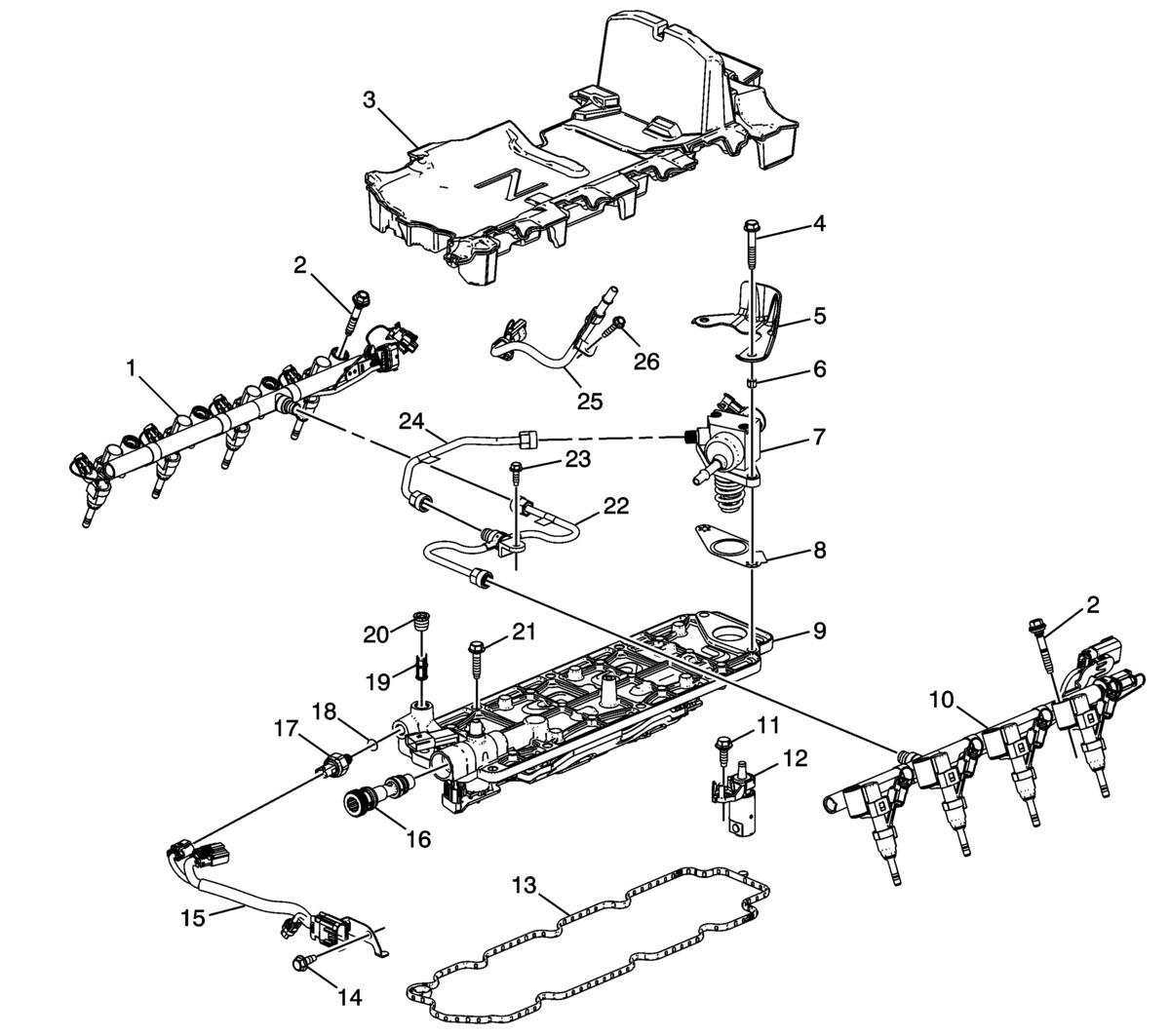

Fuel Delivery System and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Direct Fuel Injection Fuel Rail Assembly - Right |
| 2 | Fuel Injection Fuel Rail Bolt |
| 3 | Fuel Pump Insulator |
| 4 | Fuel Pump Bolt |
| 5 | Fuel Pump Cover |
| 6 | Fuel Pump Bolt Retainer |
| 7 | Fuel Pump Assembly |
| 8 | Fuel Pump Gasket |
| 9 | Valve Lifter Oil Manifold Assembly |
| 10 | Direct Fuel Injection Fuel Rail Assembly - Left |
| 11 | Valve Lifter Follower Guide Assembly Bolt |
| 12 | Valve Lifter Follower Guide Assembly |
| 13 | Valve Lifter Oil Manifold Gasket |
| 14 | Jumper Bolt |
| 15 | Jumper |
| 16 | PCV Assembly |
| 17 | Engine Oil Pressure Sensor Assembly |
| 18 | Engine Oil Pressure Sensor Assembly Seal |
| 19 | Valve Lifter Oil Filter |
| 20 | Valve Lifter Oil Manifold Plug |
| 21 | Valve Lifter Oil Manifold Bolt |
| 22 | Fuel Feed Intermediate Pipe |
| 23 | Fuel Feed Intermediate Pipe Bolt |
| 24 | Fuel Feed Intermediate Pipe |
| 25 | Fuel Feed Pipe Assembly |
| 26 | Fuel Feed Pipe Bolt |
