Front of Engine
WARNING: This page is about a different variant/trim than selected.

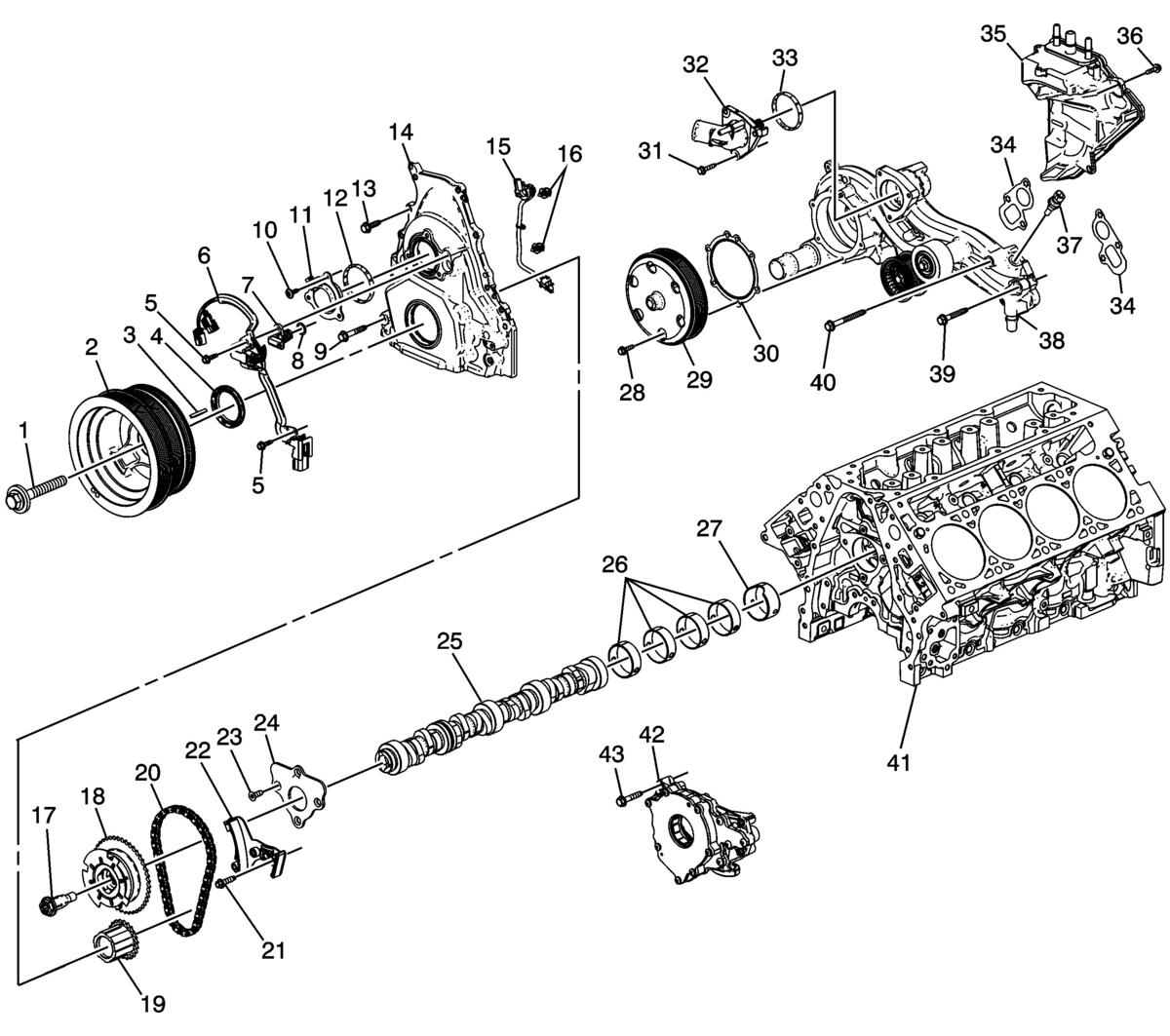

| Callout | Component Name |
|---|---|
| 1 | Crankshaft Balancer Bolt |
| 2 | Crankshaft Balancer Assembly |
| 3 | Crankshaft Balancer Key |
| 4 | Crankshaft Front Oil Seal |
| 5 | Camshaft Position Sensor Wire Assembly Bracket Bolt |
| 6 | Camshaft Position Sensor Wire Assembly |
| 7 | Camshaft Position Sensor Assembly |
| 8 | Camshaft Position Sensor Seal |
| 9 | Engine Front Cover Bolt |
| 10 | Camshaft Position Actuator Magnet Bolt |
| 11 | Camshaft Position Actuator Magnet |
| 12 | Camshaft Position Actuator Magnet Gasket |
| 13 | Engine Front Cover Bolt |
| 14 | Engine Front Cover Assembly |
| 15 | Oil Pump Flow Control Solenoid Valve Wire |
| 16 | Oil Pump Flow Control Solenoid Valve Wire Clip |
| 17 | Camshaft Position Actuator Solenoid Valve |
| 18 | Camshaft Position Actuator Assembly |
| 19 | Crankshaft Sprocket Assembly |
| 20 | Timing Chain Assembly |
| 21 | Timing Chain Tensioner Bolt |
| 22 | Timing Chain Tensioner Kit |
| 23 | Camshaft Retainer Bolt |
| 24 | Camshaft Retainer |
| 25 | Camshaft Assembly |
| 26 | Camshaft Bearings |
| 27 | Camshaft Bearing |
| 28 | Water Pump Bolt |
| 29 | Water Pump |
| 30 | Water Pump Gasket |
| 31 | Thermostat Housing Bolt |
| 32 | Thermostat Housing |
| 33 | Thermostat Housing Gasket |
| 34 | Water Pump Gasket |
| 35 | PCV Oil Separator Assembly |
| 36 | PCV Oil Separator Bolt |
| 37 | Engine Coolant Temperature Sensor |
| 38 | Engine Coolant Manifold |
| 39 | Engine Coolant Manifold Bolt |
| 40 | Engine Coolant Manifold Bolt |
