Cylinder Head/Upper Engine - With Active Fuel Management
WARNING: This page is about a different variant/trim than selected.

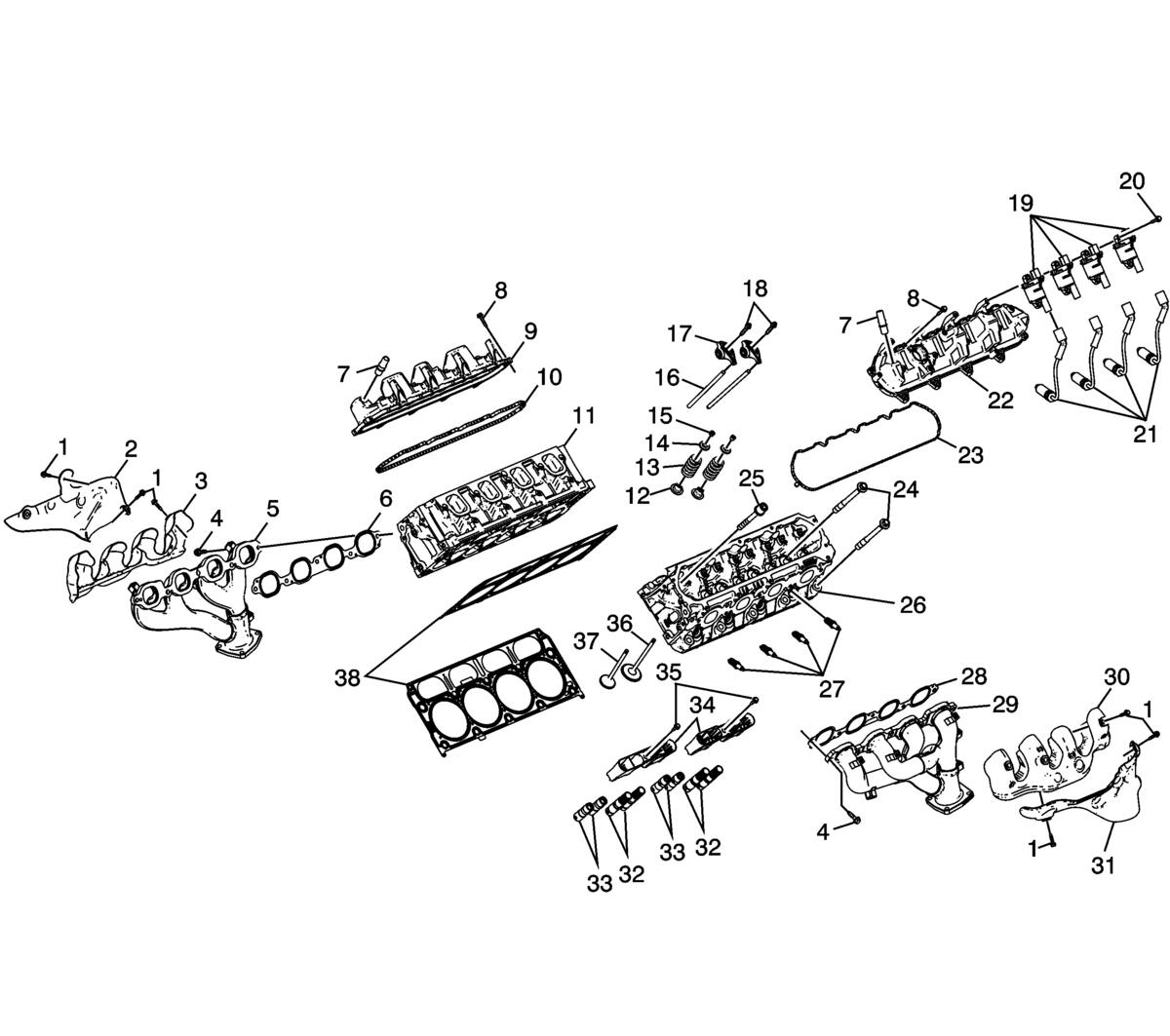

| Callout | Component Name |
|---|---|
| 1 | Exhaust Manifold Heat Shield Bolt |
| 2 | Exhaust Manifold Heat Shield - Right (Upper) |
| 3 | Exhaust Manifold Heat Shield - Right (Lower) |
| 4 | Exhaust Manifold Bolt |
| 5 | Exhaust Manifold Assembly - Right |
| 6 | Exhaust Manifold Gasket |
| 7 | PCV Fitting |
| 8 | Valve Rocker Arm Cover Bolt |
| 9 | Valve Rocker Arm Cover - Right |
| 10 | Valve Rocker Arm Cover Gasket |
| 11 | Cylinder Head - Right |
| 12 | Valve Stem Oil Seal |
| 13 | Valve Spring |
| 14 | Valve Spring Cap |
| 15 | Valve Stem Key |
| 16 | Valve Push Rod Assembly |
| 17 | Valve Rocker Arm Assembly |
| 18 | Valve Rocker Arm Pivot Support Bolt |
| 19 | Ignition Coil Assembly |
| 20 | Ignition Coil Bolt |
| 21 | Spark Plug Wire Assembly |
| 22 | Valve Rocker Arm Cover - Left |
| 23 | Valve Rocker Arm Cover Gasket |
| 24 | Cylinder Head Bolt |
| 25 | Cylinder Head Bolt |
| 26 | Cylinder Head - Left |
| 27 | Spark Plug Assembly |
| 28 | Exhaust Manifold Gasket |
| 29 | Exhaust Manifold Assembly - Left |
| 30 | Exhaust Manifold Heat Shield - Left (Upper) |
| 31 | Exhaust Manifold Heat Shield - Left (Lower) |
| 32 | Valve Lifter |
| 33 | Valve Lifter - Non AFM |
| 34 | Valve Lifter Guide |
| 35 | Valve Lifter Guide Bolt |
| 36 | Exhaust Valve |
| 37 | Intake Valve |
| 38 | Cylinder Head Gasket |
