CMP Actuator Solenoid Valve
WARNING: This page is about a different variant/trim than selected.

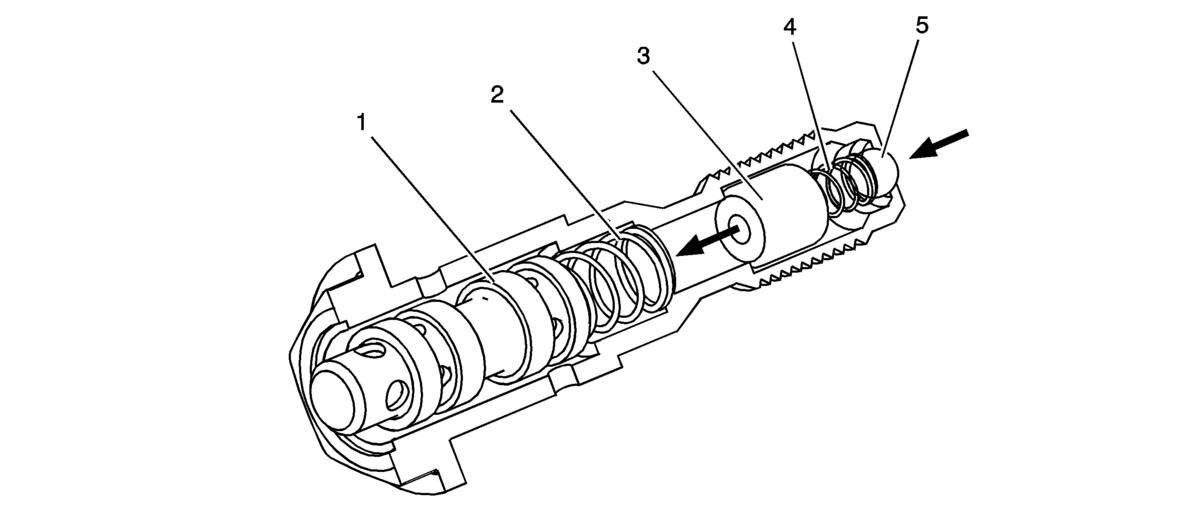

The CMP actuator solenoid valve consists of a housing, spool valve (1), spool return spring (2), oil filter (3), inlet check ball return spring (4), and inlet check ball (5). Pressurized engine oil enters the valve and travels through the filter to the spool. Spool position is controlled by the CMP magnet and engine control module (ECM). When the spool is moved to the proper position, oil flow is directed through the valve and into the CMP actuator assembly. The CMP solenoid valve is a torque-to-yield design and should be replaced each time it is removed.
