CMP Actuator Magnet
WARNING: This page is about a different variant/trim than selected.

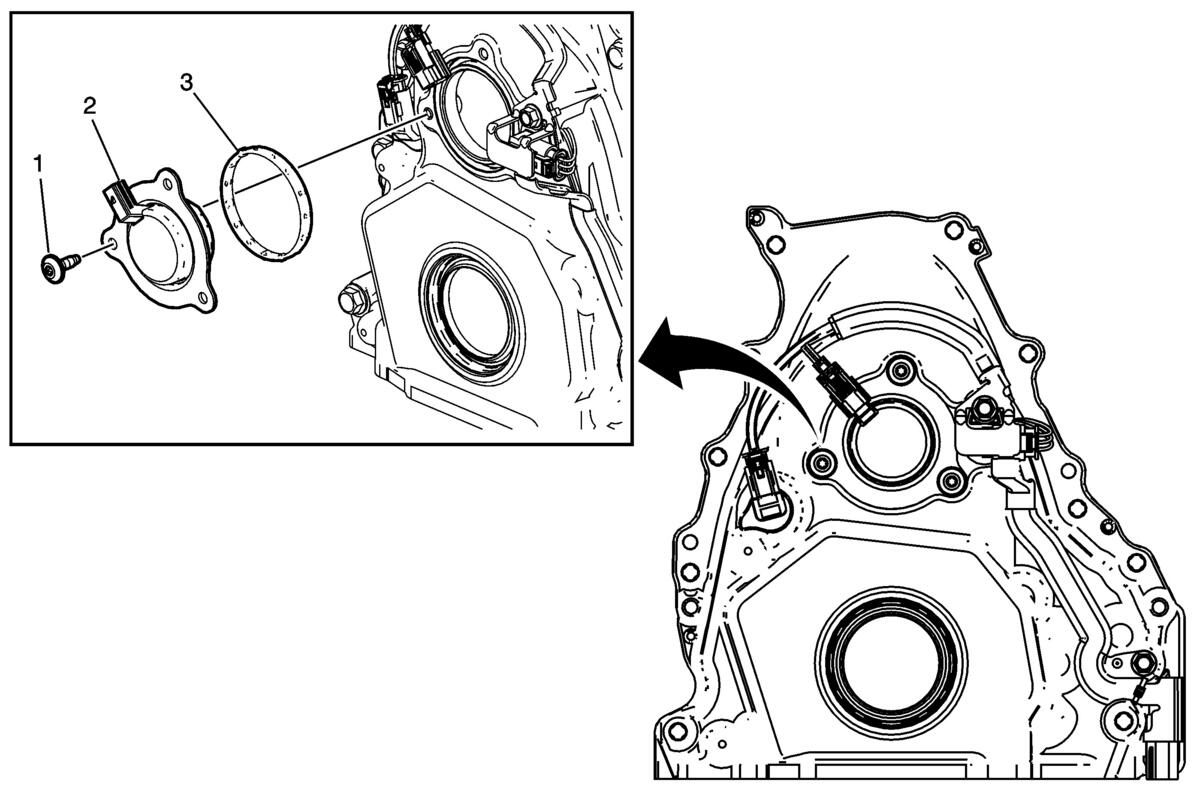

The CMP actuator magnet (2) is located in the engine front cover and is sealed by a press in place gasket (3). The CMP actuator magnet is controlled by a 12-volt 150 Hz pulse width 0 - 100 percent duty cycle signal from the ECM. When energized, the solenoid uses electromagnetic force on the magnet pintle to position the spool valve of the CMP solenoid valve.
