Valve Rocker Arm Cover Assemble - Right Side

WARNING: This page is about a different variant/trim than selected.

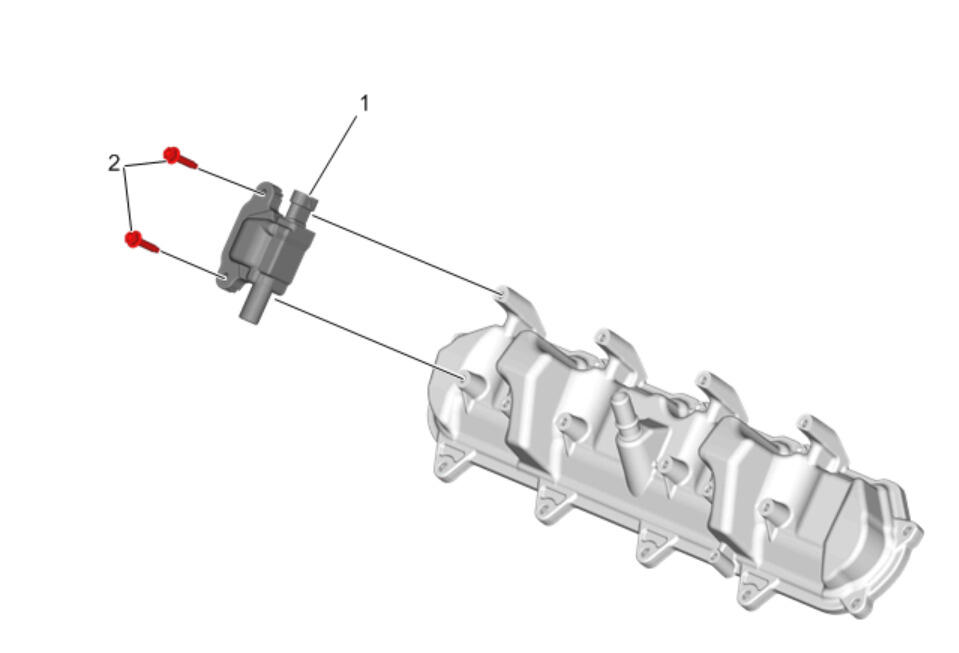

GM4044545Courtesy of GENERAL MOTORS COMPANY
Valve Rocker Arm Cover Assemble - Right Side

Callout Component Name
1 Ignition Coil (Qty: 4)
2 Ignition Coil Bolt (Qty: 8)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (88 lb in)
