Single Use Fasteners and Components
WARNING: This page is about a different variant/trim than selected.
Valve Lifter Oil Manifold Gasket

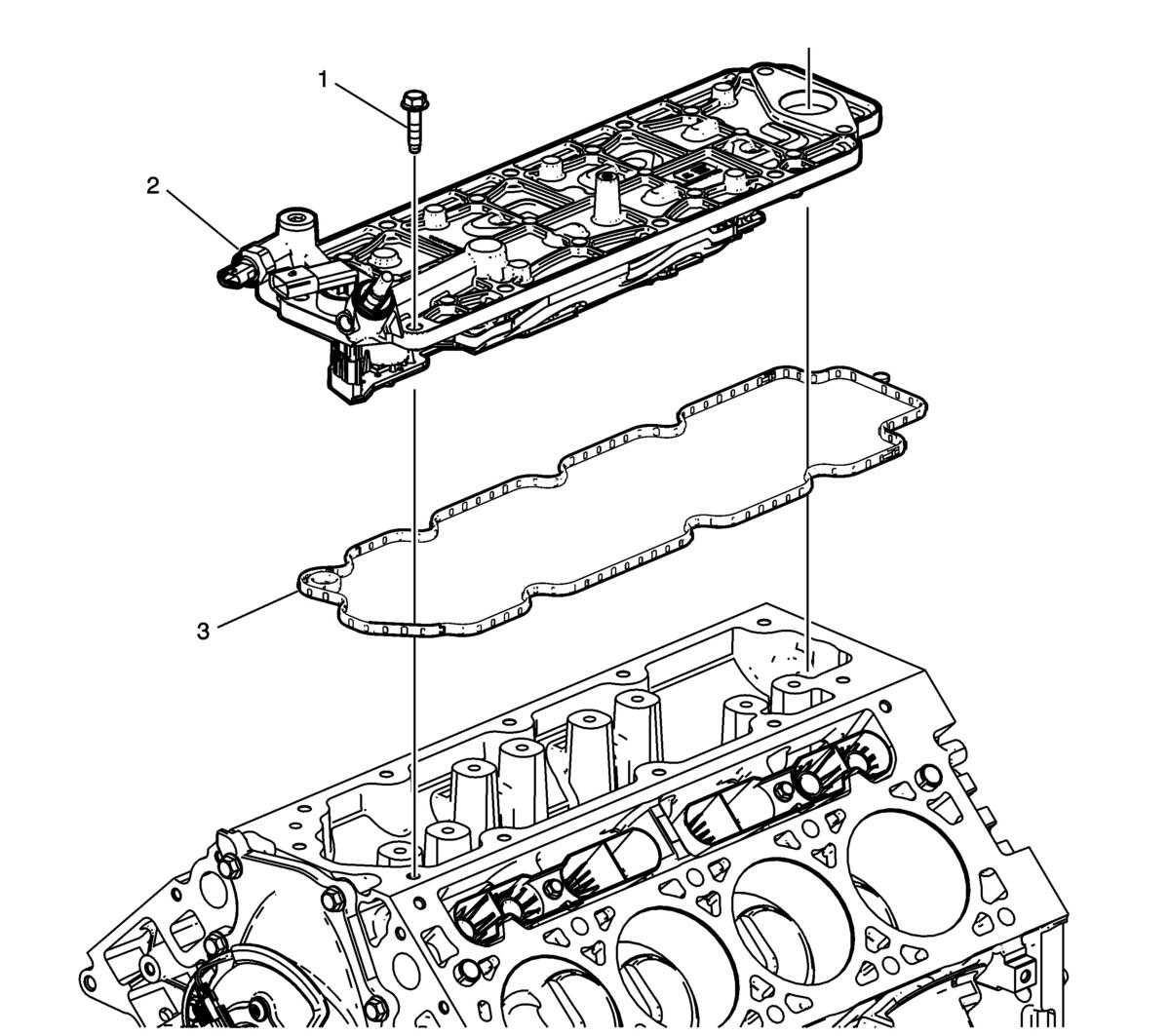

Valve Lifter Oil Manifold Removal
| Callout | Component Name |
|---|---|
| 1 | Valve Lifter Oil Manifold Bolt |
| 2 | Valve Lifter Oil Manifold Assembly |
| 3 | Valve Lifter Oil Manifold Gasket Refer to Replacing Engine Gaskets .
NOTE:
DISCARD gasket, it is not reusable. |

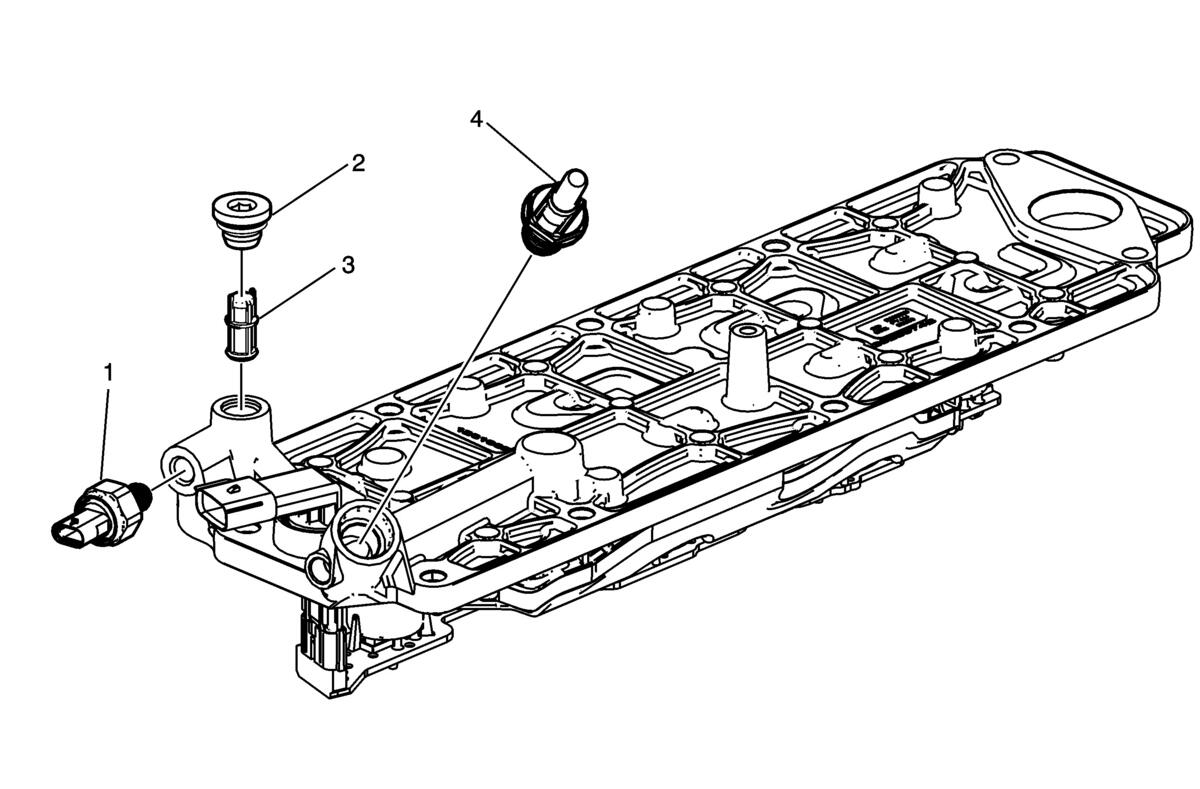

Valve Lifter Oil Manifold Disassemble
| Callout | Component Name |
|---|---|
| 1 | Oil Pressure Sensor |
| 2 | Valve Lifter Oil Manifold Plug |
| 3 | Valve Lifter Oil Filter |
| 4 | PCV Valve |
