Valve Lifter Oil Manifold Assemble
WARNING: This page is about a different variant/trim than selected.

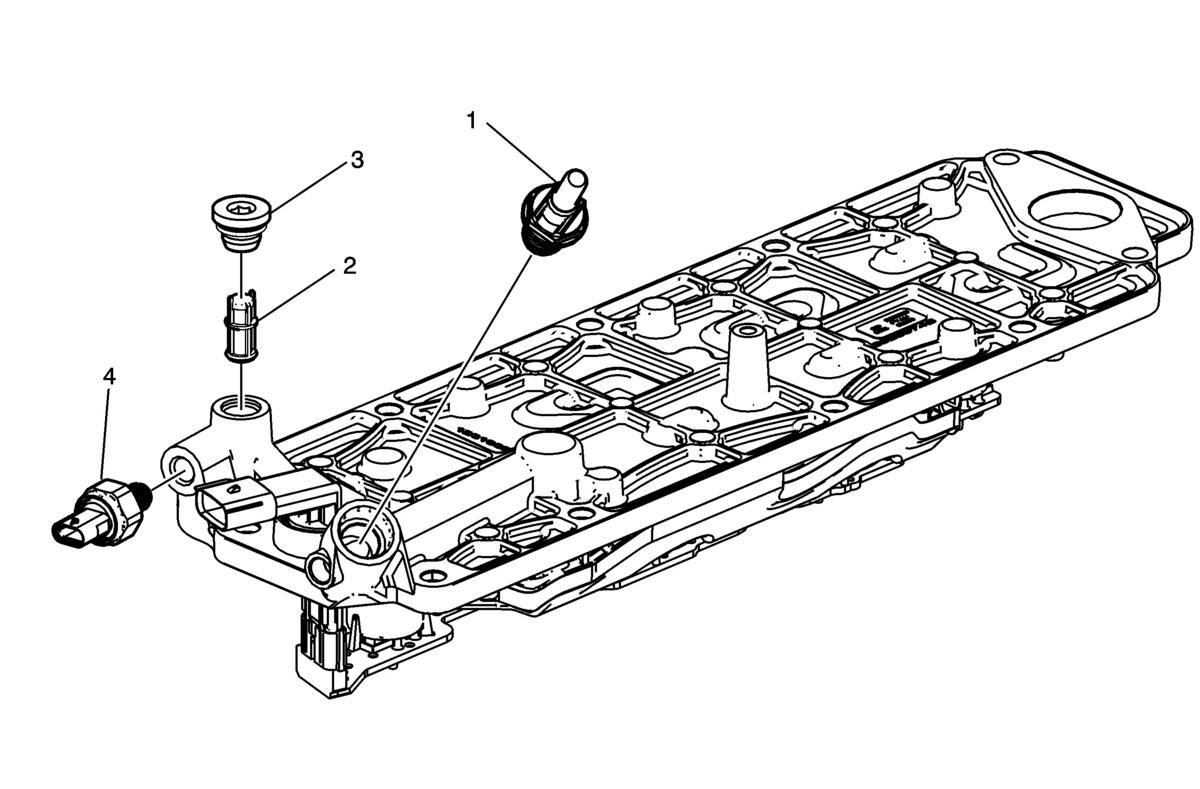

Valve Lifter Oil Manifold Assemble
| Callout | Component Name |
|---|---|
| 1 | PCV Valve
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (53 lb in) |
| 2 | Valve Lifter Oil Filter |
| 3 | Valve Lifter Oil Manifold Plug Procedure Apply sealant GM P/N 12346004 (Canadian P/N 10953480) to the threads of the sensor. Refer to Adhesives, Fluids, Lubricants, and Sealers . Tighten 30 N.m (22 lb ft) |
| 4 | Oil Pressure Sensor Procedure Apply sealant GM P/N 12346004 (Canadian P/N 10953480) to the threads of the sensor. Refer to Adhesives, Fluids, Lubricants, and Sealers . Tighten 35 N.m (26 lb ft) |
