Single Use Fasteners and Components
WARNING: This page is about a different variant/trim than selected.

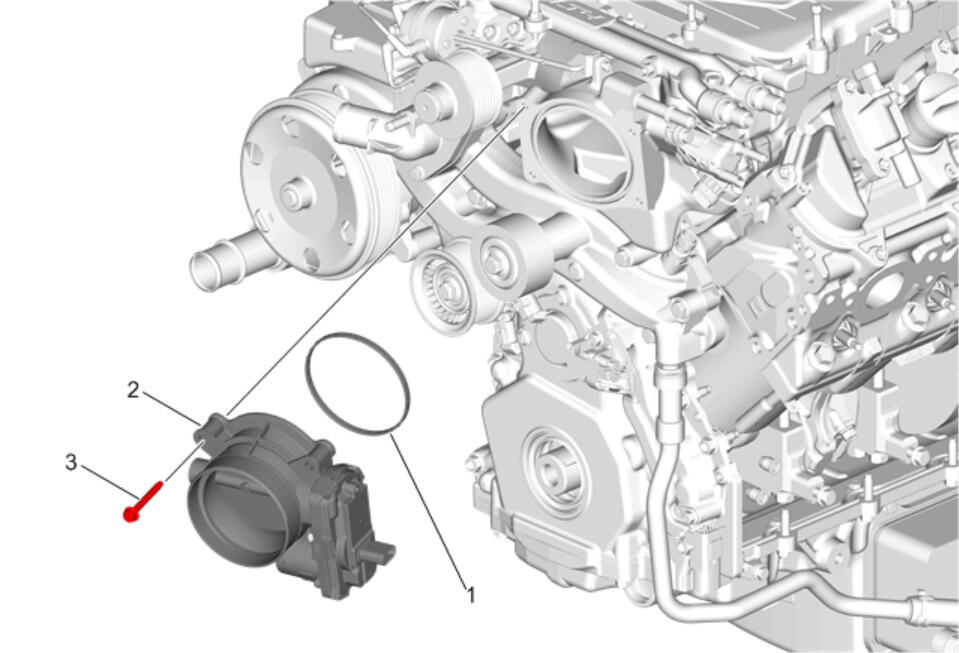

Throttle Body Seal
| Callout | Component Name |
|---|---|
| 1 | Throttle Body Seal
NOTE:
Must use a NEW gasket. |
| 2 | Throttle Body Assembly |
| 3 | Throttle Body Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (88 lb in) |
