Crankshaft Oil Deflector, High Pressure Port Seal, and Front Seal Removal
WARNING: This page is about a different variant/trim than selected.

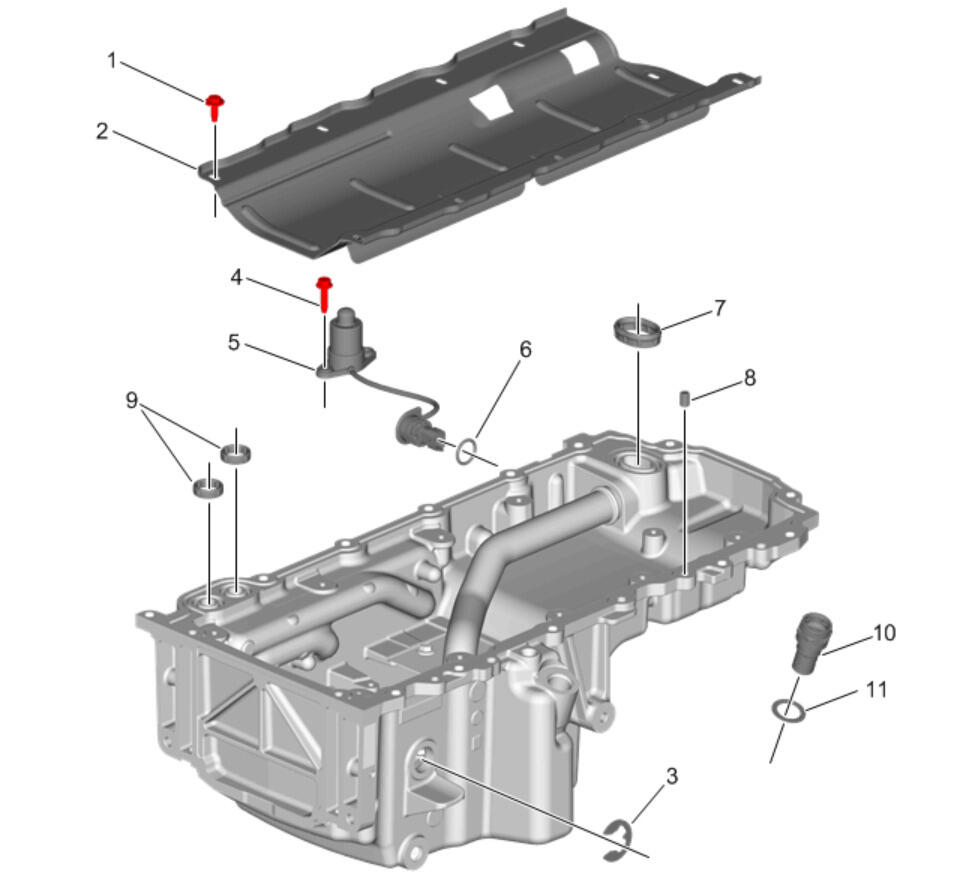

Fig 1: Exploded View Of Crankshaft Oil Deflector, High Pressure Port Seal And Front Seal Removal Components
Crankshaft Oil Deflector, High Pressure Port Seal, and Front Seal Removal
| Callout | Component Name |
|---|---|
| 1 | Crankshaft Oil Deflector Bolt |
| 2 | Crankshaft Oil Deflector |
| 3 | Engine Oil Level Sensor Lead Clip |
| 4 | Engine Oil Level Indicator Switch Bolt |
| 5 | Engine Oil Level Indicator Switch |
| 6 | Engine Oil Level Indicator Switch Seal
NOTE:
DISCARD seal it is not reusable. |
| 7 | Oil Pan Front Seal
NOTE:
DISCARD it is not reusable. |
| 8 | Oil Pan Locating Pin |
| 9 | Oil Pan High Pressure Port Seal [2x]
NOTE:
DISCARD seal it is not reusable. |
| 10 | Oil Flow Check Valve
NOTE:
DISCARD the valve. |
| 11 | Turbocharger Coolant Feed and Return Pipe Gasket |
