Crankshaft Oil Deflector, High Pressure Port Seal, and Front Seal Installation
WARNING: This page is about a different variant/trim than selected.

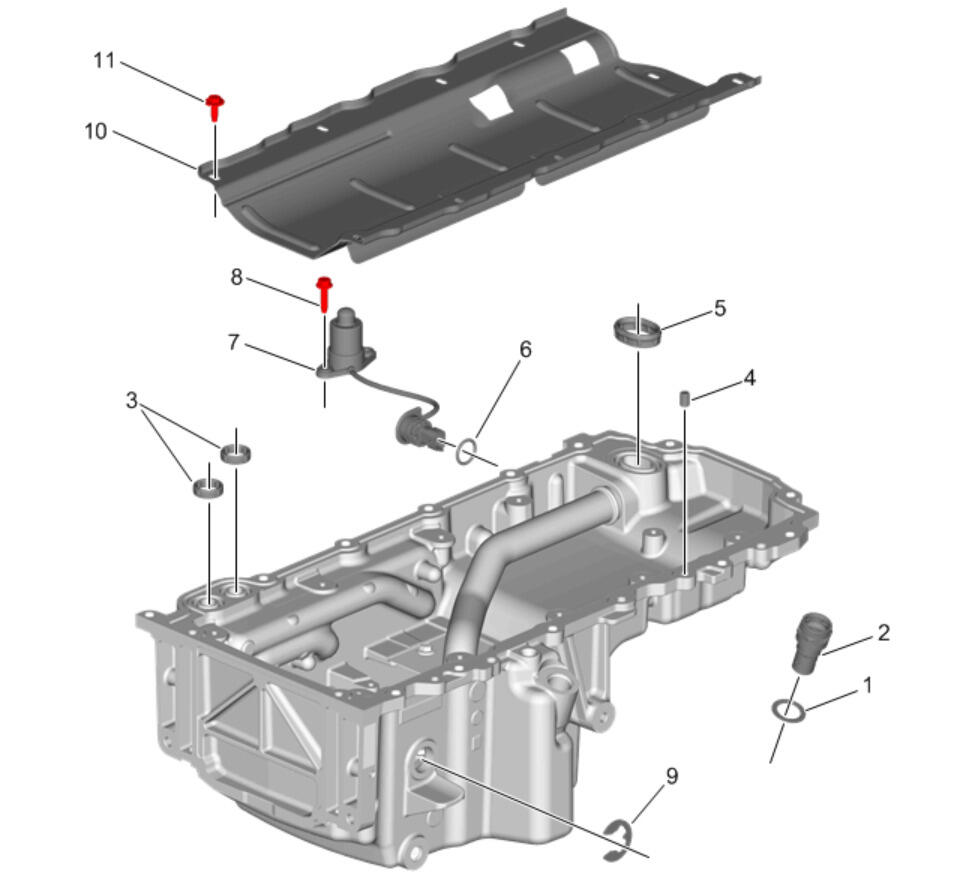

Fig 1: Exploded View Of Crankshaft Oil Deflector, High Pressure Port Seal And Front Seal Installation Components
Crankshaft Oil Deflector, High Pressure Port Seal, and Front Seal Installation
| Callout | Component Name |
|---|---|
| 1 | Turbocharger Coolant Feed and Return Pipe Gasket |
| 2 | Oil Flow Check Valve
NOTE:
If Oil Flow Check Valve is removed, replace with a NEW Oil Flow Check Valve. Tighten 35 N.m (26 lb ft) |
| 3 | Oil Pan High Pressure Port Seal [2x]
NOTE:
Use a NEW seal. |
| 4 | Oil Pan Locating Pin |
| 5 | Oil Pan Front Seal
NOTE:
Use a NEW seal. |
| 6 | Engine Oil Level Indicator Switch Seal
NOTE:
Use a NEW seal. |
| 7 | Engine Oil Level Indicator Switch |
| 8 | Engine Oil Level Indicator Switch Bolt Tighten 10 N.m (88 lb in) |
| 9 | Engine Oil Level Sensor Lead Clip |
| 10 | Crankshaft Oil Deflector |
| 11 | Crankshaft Oil Deflector Bolt Tighten 10 N.m (88 lb in) |
