Oil Level Indicator and Tube Installation (LT4)

WARNING: This page is about a different variant/trim than selected.

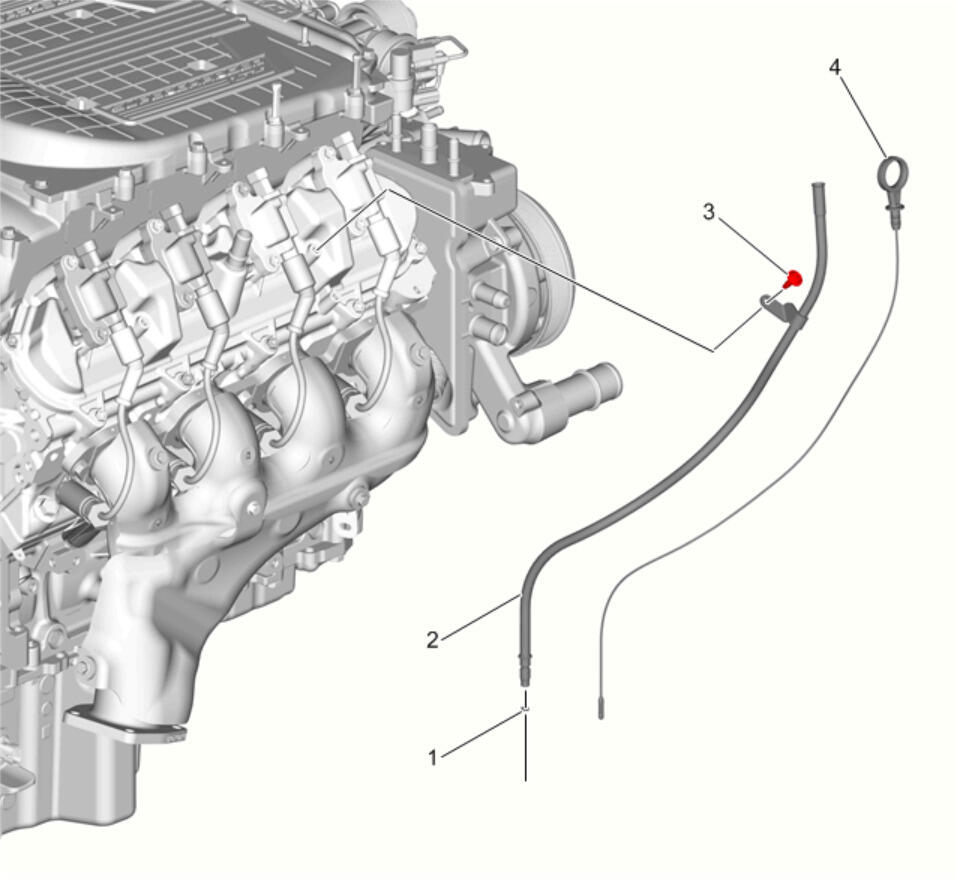

GM4041488Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Oil Level Indicator Tube O-Ring
2 Oil Level Indicator Tube
3 Oil Level Indicator Tube Bracket Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (88 lb in)
4 Oil Level Indicator
