Cleaning Procedure
WARNING: This page is about a different variant/trim than selected.

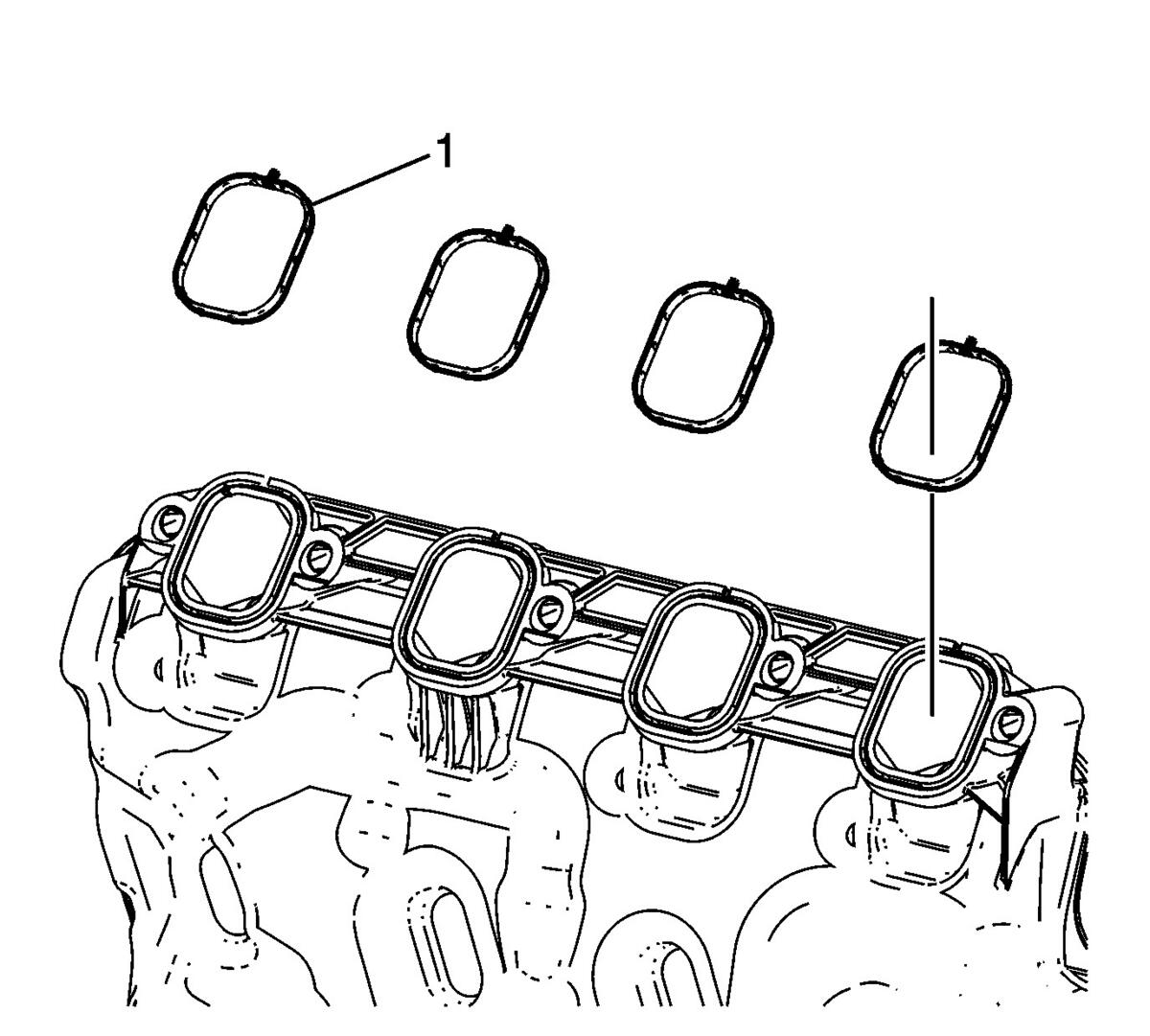

Remove and DISCARD the intake manifold-to-cylinder head gaskets (1).
-

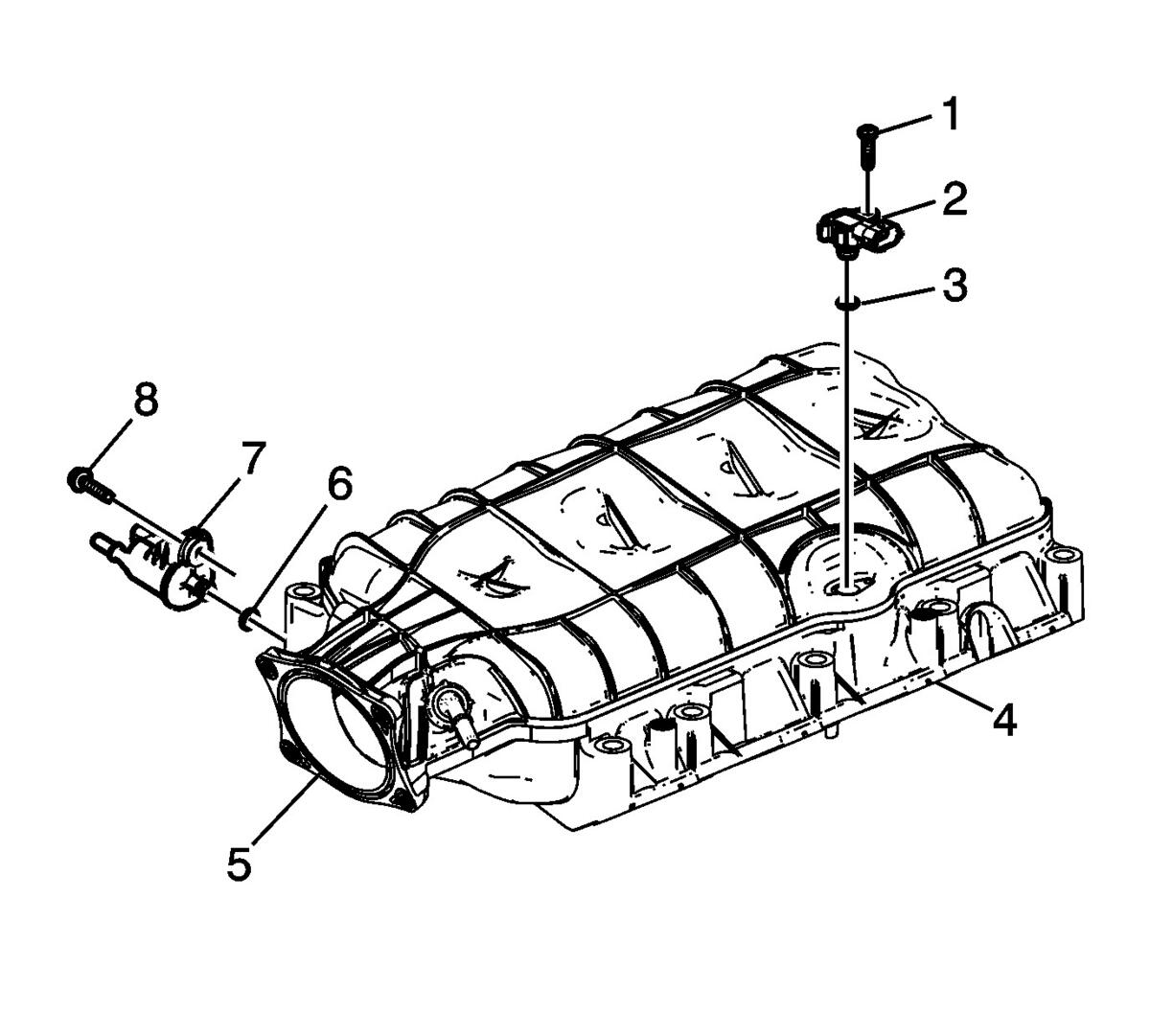

Fig 1: Exploded View Of Manifold Absolute Pressure (MAP) Sensor And EVAP Canister Purge Solenoid Valve Components
Courtesy of GENERAL MOTORS COMPANY
Remove the manifold absolute pressure (MAP) sensor bolt (1), MAP sensor (2), and seal (3).
- Remove the evaporative emission (EVAP) canister purge solenoid valve bolt (8), EVAP canister purge solenoid valve (7), and seal (6).
- Clean the intake manifold in solvent.
- Dry the intake manifold with compressed air.
WARNING:
Refer to Safety Glasses and Compressed Air Warning .
