Single Use Fasteners and Components

WARNING: This page is about a different variant/trim than selected.

Engine Oil Cooler Seal [2x]

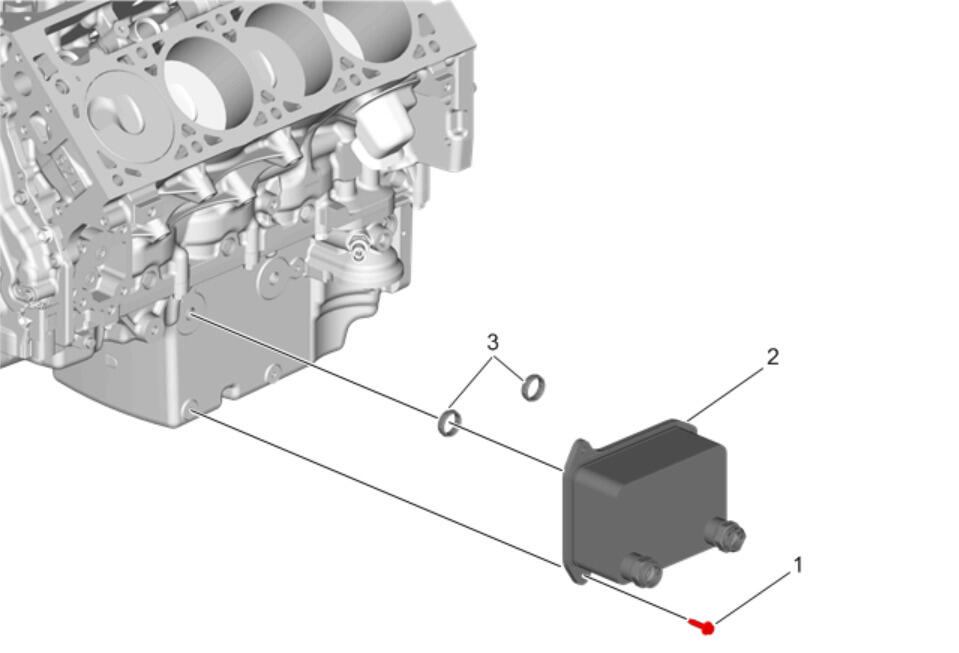

GM4044540Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Engine Oil Cooler Bolt (Qty: 4)
2 Engine Oil Cooler
3 Engine Oil Cooler Seal (Qty: 2)
NOTE:

Discard gasket, it is not reusable.


Refer to Replacing Engine Gaskets .
