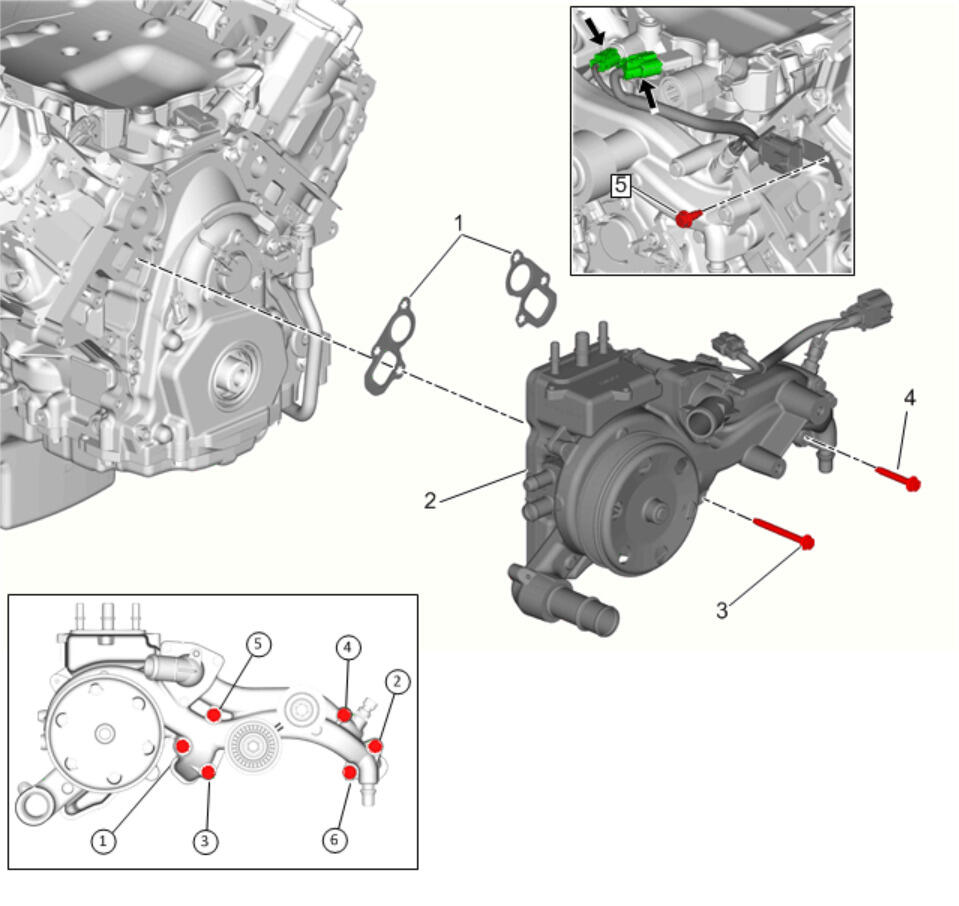

Water Pump Gasket @ Engine Assembly [2x]
| Callout | Component Name |
|---|---|
| 1 | Water Pump Gasket [2x]
NOTE:
Must use NEW gaskets when installing engine coolant manifold. |
| 2 | Engine Coolant Manifold Assembly Procedure Connect the oil pressure sensor and valve lifter oil manifold connectors after installing the engine coolant manifold assembly. |
| 3 | Engine Coolant Manifold Bolt
CAUTION:
Refer to Fastener Caution . Procedure Tighten the engine coolant manifold bolts in the sequence shown.
NOTE:
Clean the threads and apply a threadlocker. Tighten 25 N.m (18 lb ft) Refer to Adhesives, Fluids, Lubricants, and Sealers . |
| 4 | Engine Coolant Manifold Bolt Procedure Tighten the engine coolant manifold bolts in the sequence shown.
NOTE:
Clean the threads and apply a threadlocker. Tighten 25 N.m (18 lb ft) Refer to Adhesives, Fluids, Lubricants, and Sealers . |
| 5 | Jumper Harness Bolt Tighten 25 N.m (18 lb ft) |
