Single Use Fasteners and Components

WARNING: This page is about a different variant/trim than selected.

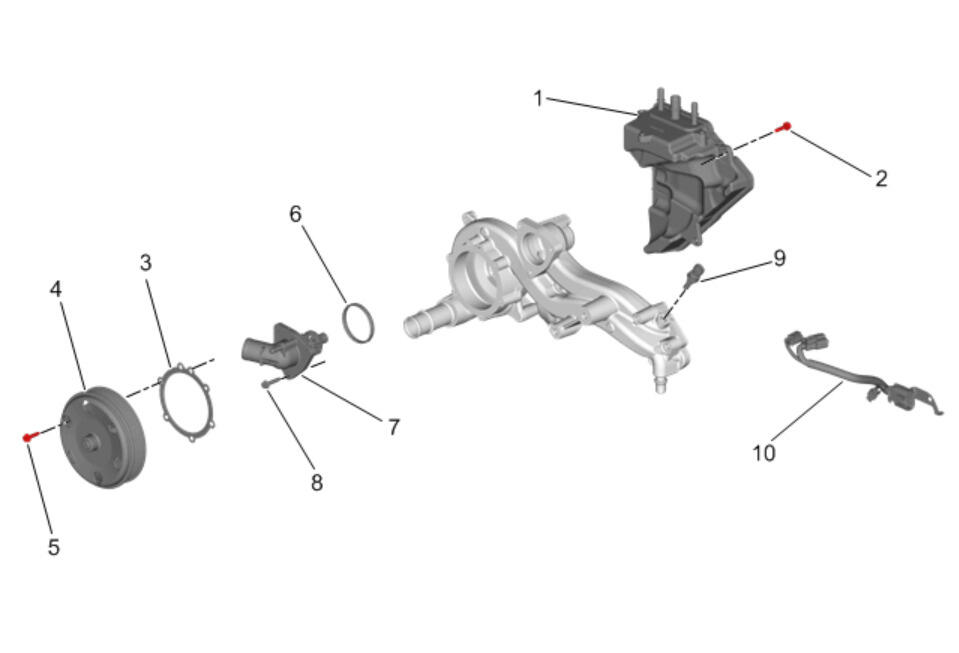

Fig 1: Exploded View Of Engine Coolant Manifold Assemble Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Positive Crankcase Ventilation Oil Separator
2	Positive Crankcase Ventilation Oil Separator Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (88 lb in)
3	Water Pump Gasket NOTE: Install a NEW Gasket.
4	Water Pump Assembly
5	Water Pump Assembly Bolts Tighten 10 N.m (88 lb in)
6	Engine Coolant Thermostat Housing Gasket NOTE: Install a NEW Gasket.
7	Water Pump Outlet Assembly (with Thermostat)
8	Water Pump Outlet Bolts Procedure Install and hand tighten all three bolts. Tighten bolts to final torque. Tighten 10 N.m (88 lb in)
9	Engine Coolant Temperature Sensor Tighten 20 N.m (15 lb ft)
10	Jumper Harness
