Knock Sensor Shield, Knock Sensor, and Engine Block Oil Gallery Plug Removal
WARNING: This page is about a different variant/trim than selected.

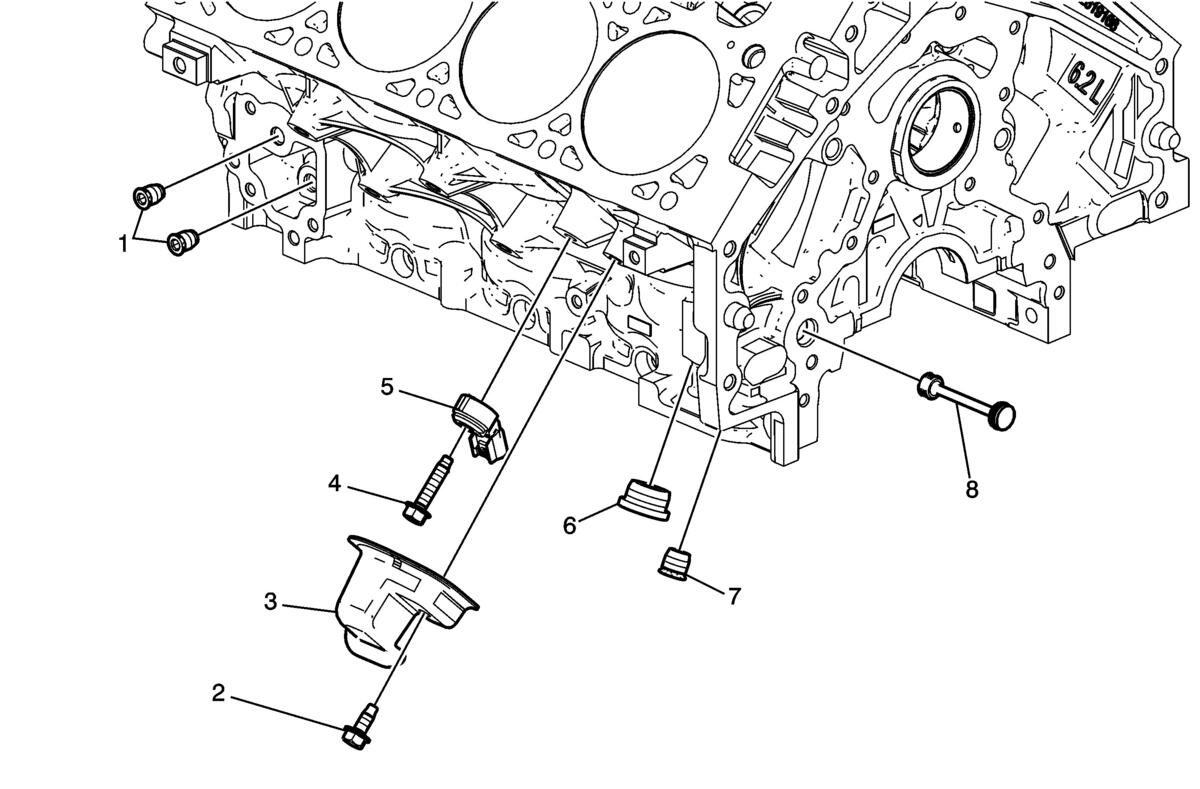

Fig 1: Exploded View Of Knock Sensor Shield, Knock Sensor And Engine Block Oil Gallery Plug Removal Components
Knock Sensor Shield, Knock Sensor, and Engine Block Oil Gallery Plug Removal
| Callout | Component Name |
|---|---|
| 1 | Engine Block Oil Gallery Plug |
| 2 | Knock Sensor Shield Bolt |
| 3 | Knock Sensor Shield |
| 4 | Knock Sensor Bolt |
| 5 | Knock Sensor Assembly |
| 6 | Engine Block Plug |
| 7 | Engine Block Plug |
| 8 | Engine Block Plug |
