Crankshaft Position Sensor, Engine Block Plug, Knock Sensor, and Piston Oil Nozzle Removal
WARNING: This page is about a different variant/trim than selected.

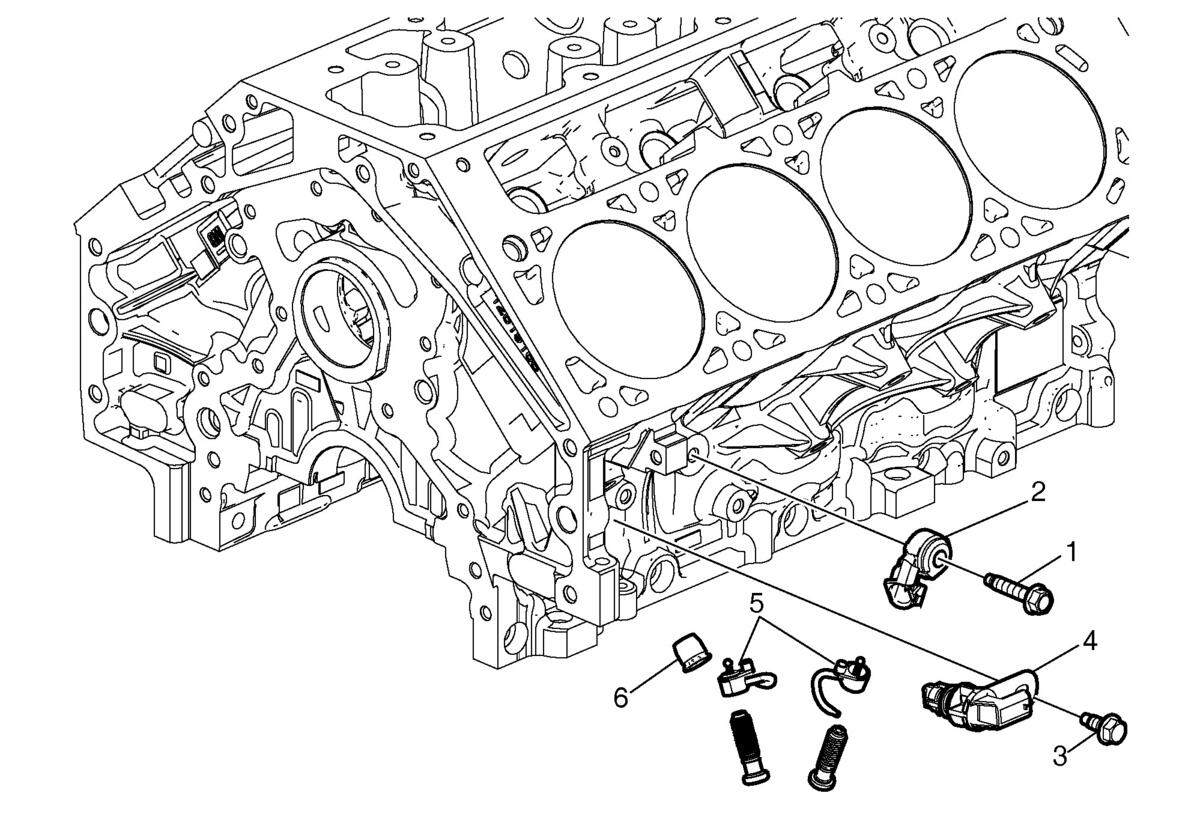

Fig 1: Exploded View Of Crankshaft Position Sensor, Engine Block Plug, Knock Sensor And Piston Oil Nozzle Removal Components
Crankshaft Position Sensor, Engine Block Plug, Knock Sensor, and Piston Oil Nozzle Removal
| Callout | Component Name |
|---|---|
| 1 | Knock Sensor Bolt |
| 2 | Knock Sensor Assembly |
| 3 | Crankshaft Position Sensor Bolt |
| 4 | Crankshaft Position Sensor |
| 5 | Piston Oil Nozzle Assembly |
| 6 | Engine Block Plug |
