Cylinder Head Disassemble (LT1)

WARNING: This page is about a different variant/trim than selected.

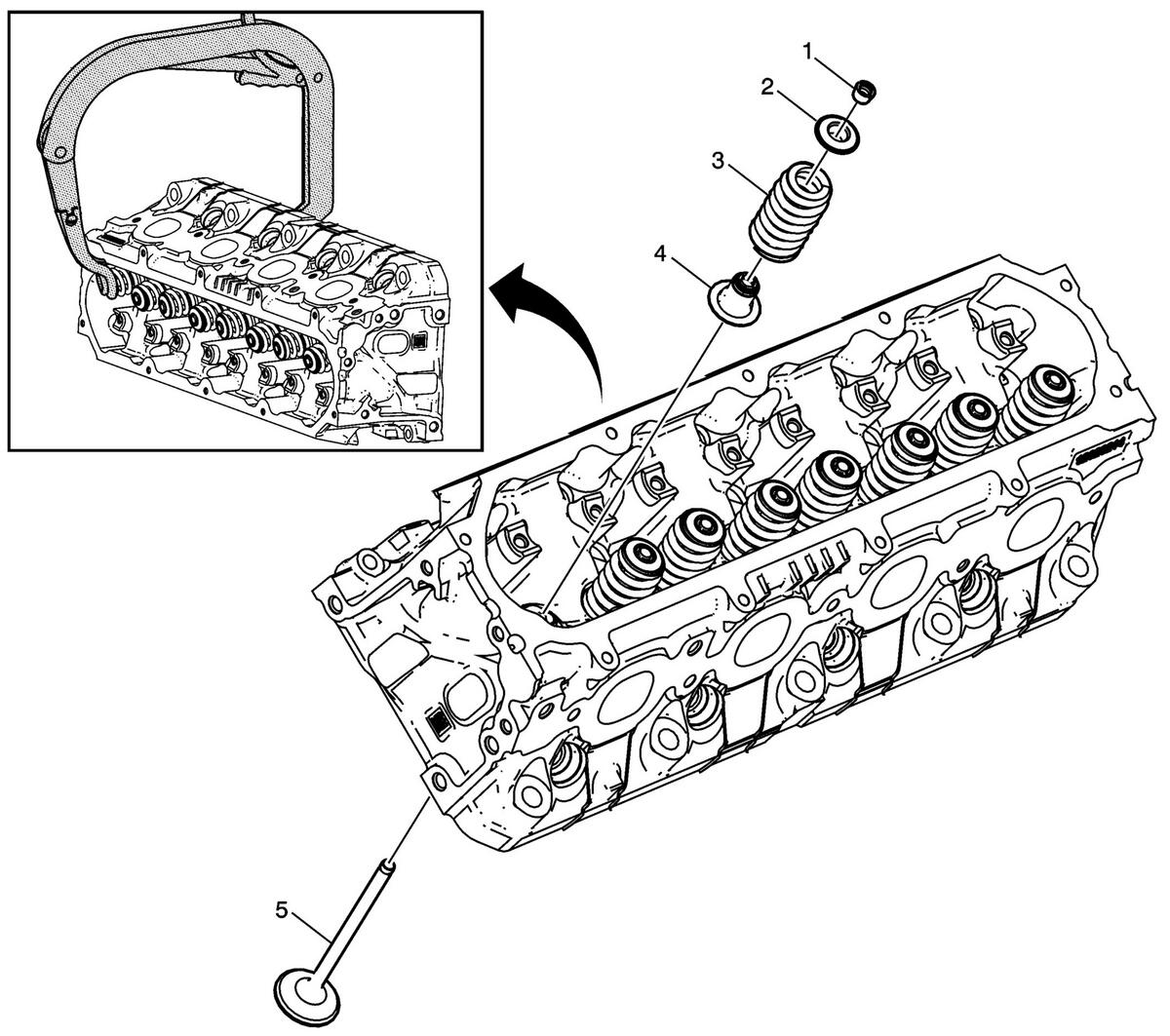

GM2889921Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Valve Stem Key

Procedure

  1. Install the J-8062  compressor (3) onto the head.
  2. Remove the valve stem keys.

Special Tools
J-8062  Valve Spring Compressor
For equivalent regional tools, refer to Special Tools .
2 Valve Stem Spring Cap
3 Valve Spring
4 Valve Stem Oil Seal
NOTE:

NEVER reuse a valve stem oil seal.
5 Valve
