Cylinder Head Assemble (LT4)

WARNING: This page is about a different variant/trim than selected.

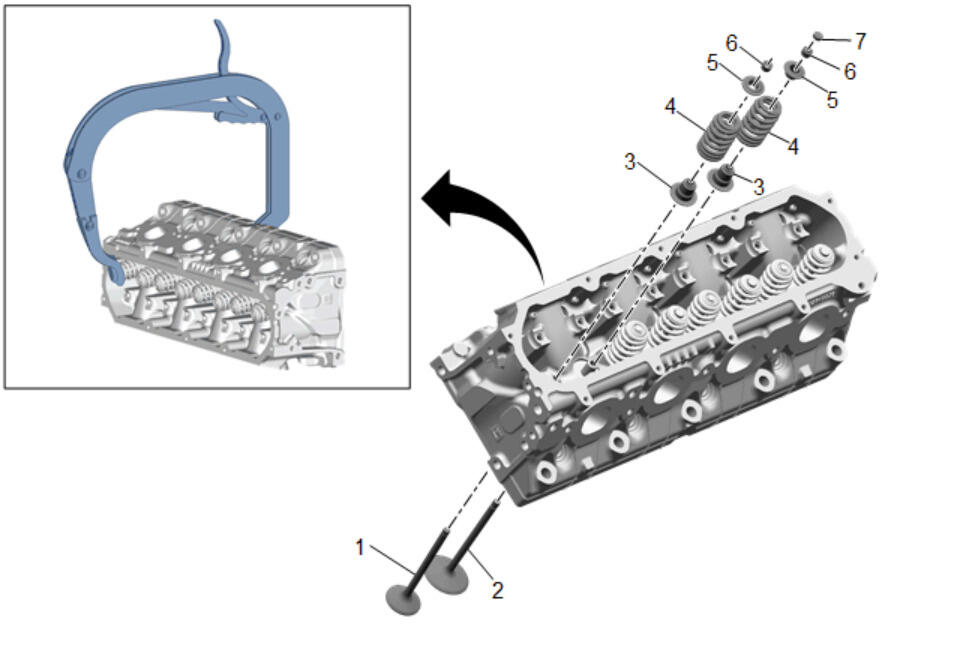

Fig 1: Exploded View Of Cylinder Head Assemble Components (LT4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Exhaust Valve
2	Intake Valve
3	Valve Stem Oil Seal NOTE: NEVER reuse a valve stem oil seal.
4	Valve Spring
5	Valve Stem Spring Cap
6	Valve Stem Key Procedure Install the J-8062 compressor (3) onto the head. Install the valve stem keys. Special Tools J-8062 Valve Spring Compressor For equivalent regional tools, refer to Special Tools .
7	Valve Rocker Arm Wear Pad NOTE: Valve Rocker Arm Wear Pads are installed on Intake Valves only.
