Cylinder Head Assemble (LT1)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

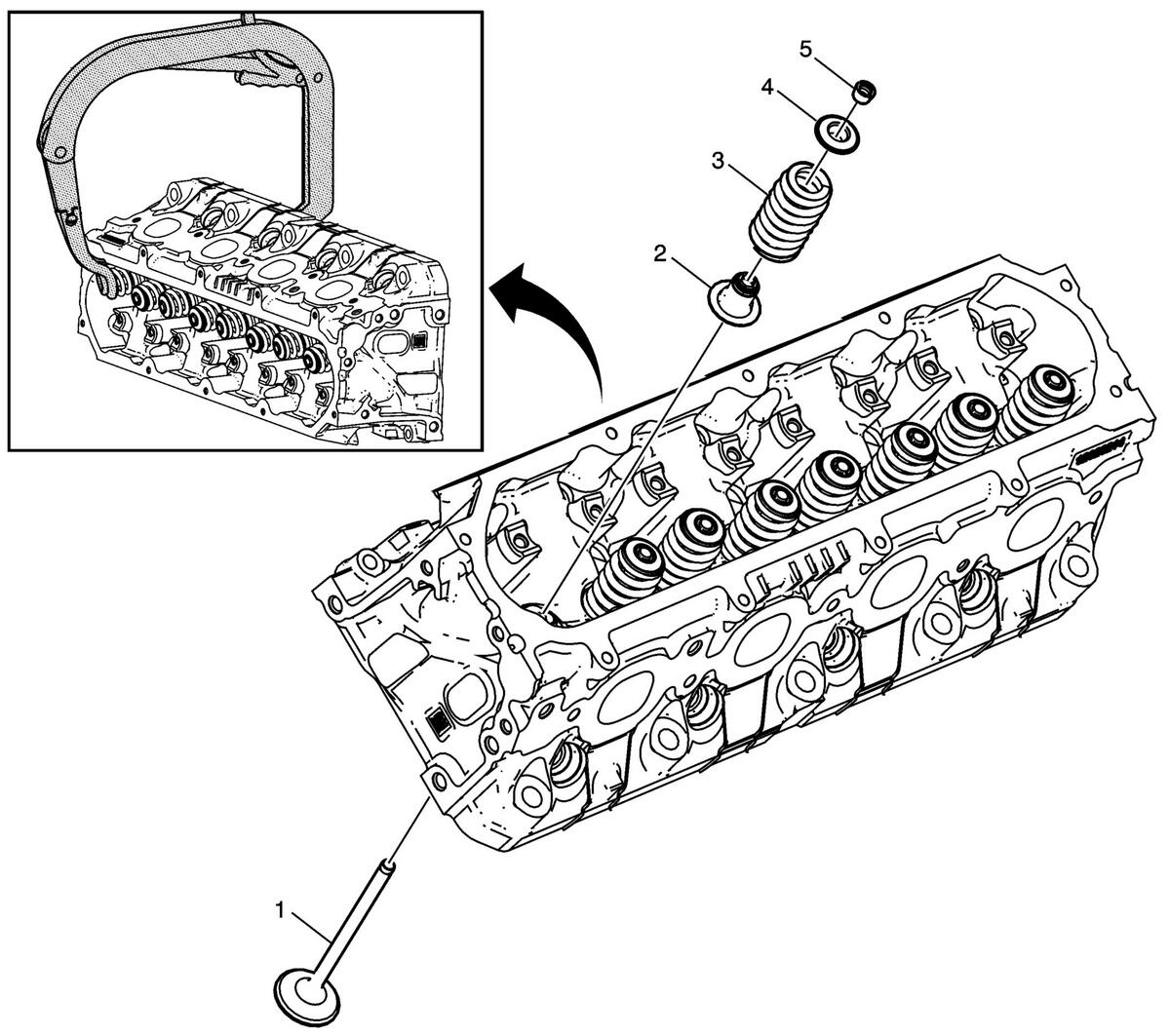

Callout	Component Name
1	Valve
2	Valve Stem Oil Seal NOTE: NEVER reuse a valve stem oil seal.
3	Valve Spring
4	Valve Stem Spring Cap
5	Valve Stem Key Procedure Install the J-8062 compressor (3) onto the head. Install the valve stem keys. Special Tools J-8062 Valve Spring Compressor For equivalent regional tools, refer to Special Tools .
