Crankshaft Rear Oil Seal Installation

Special Tools

• J-41479  Crankshaft Rear Oil Seal Installer
• J-41479-2A  Crankshaft Rear Oil Seal Installation Guide

For equivalent regional tools, refer to Special Tools .

1. Courtesy of GENERAL MOTORS COMPANY

   IMPORTANT:

   For proper orientation, note the installation direction of the oil seal. The oil seal is a reverse-lip design. The part number is applied to the outside face of the seal, as shown.

   Inspect the seal and identify the part number markings for proper orientation.

2. Courtesy of GENERAL MOTORS COMPANY

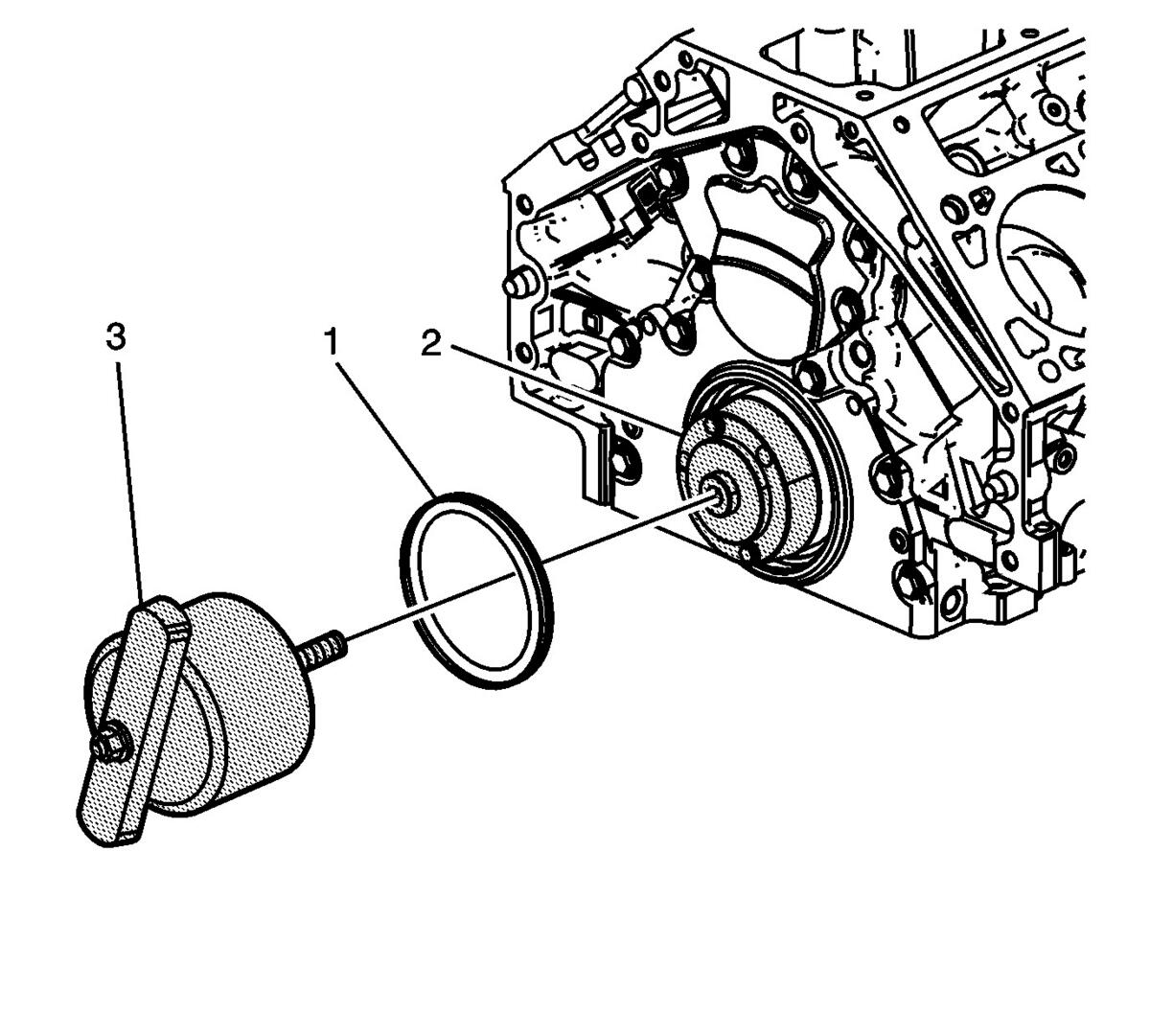

   Install the J-41479  Crankshaft Rear Oil Seal Installer (3) or the J-41479-2A  Crankshaft Rear Oil Seal Installation Guide cone (2) and bolts onto the rear of the crankshaft. The J-41479-2A  Crankshaft Rear Oil Seal Installation Guide may be required for manual transmission applications.

3. Tighten the bolts until snug. Do not overtighten.
4. Install the rear oil seal (1) onto the tapered cone (2) and push the seal to the rear seal bore. Install the oil seal with the part number markings facing away from the engine.
5. Thread the J-41479  Crankshaft Rear Oil Seal Installer threaded rod into the tapered cone until the tool (3) contacts the oil seal.
6. Align the oil seal onto the tool (3).
7. Rotate the handle of the tool (3) clockwise until the seal enters the rear housing and bottoms into the seal bore.
8. Remove the tool.
