Special Tools

DT-45000  Seal Remover

Equivalent regional tools: Special Tools

1. Courtesy of GENERAL MOTORS COMPANY

   NOTE:

   The supercharger intercoolers and fasteners are not serviceable and are not to be tampered with or removed at any time for any reason.

   Remove the inlet air pressure and temperature sensor bolt (2).

2. Remove the inlet air pressure and temperature sensor (1).

3. Courtesy of GENERAL MOTORS COMPANY

   Remove the evaporative emission canister purge valve bolt (2).

4. Remove the evaporative emission canister purge valve (1).

5. Courtesy of GENERAL MOTORS COMPANY

   Remove the mass air pressure sensor bolt (2).

6. Remove the mass air pressure sensor (1).

7. Courtesy of GENERAL MOTORS COMPANY

   Remove the charge air bypass valve vacuum tube (1).

8. Courtesy of GENERAL MOTORS COMPANY

   Hold the bypass valve actuator in place and remove the 2 bypass valve actuator bolts (2).

9. Courtesy of GENERAL MOTORS COMPANY

   Rotate the bypass valve actuator clockwise to approximately the one o'clock position.

10. Remove the bypass actuator rod from the arm of the bypass valve.
11. Remove the supercharger bypass valve actuator (1).

12. Courtesy of GENERAL MOTORS COMPANY

    CAUTION:

    Do not attempt to adjust the Bypass Valve level set screw. This screw is adjusted and set at the factory for optimal supercharger performance. Attempting to adjust the set screw could result in diminished supercharger performance or damage to the supercharger.

    The bypass valve set screw does NOT need to be adjusted during disassemble or reassemble of the supercharger (1).

13. Courtesy of GENERAL MOTORS COMPANY

    Remove the 4 throttle body bolts (3).

14. Remove throttle body (2).
15. Remove throttle body gasket (1).

16. Courtesy of GENERAL MOTORS COMPANY

    Remove the 4 supercharger water manifold bolts (1).

17. Remove supercharger water manifold (2).
18. Remove and DISCARD the 4 supercharger water manifold gaskets (3).

19. Courtesy of GENERAL MOTORS COMPANY

    Remove and DISCARD the 8 intake manifold gaskets (1).

20. Courtesy of GENERAL MOTORS COMPANY

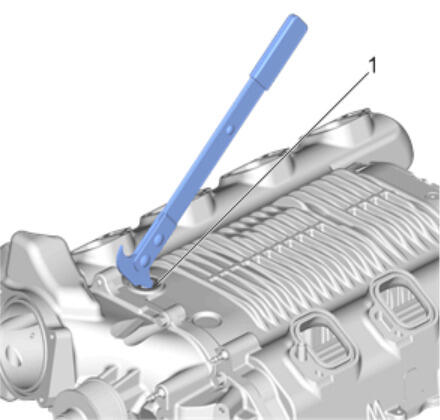

    Using the DT-45000  Seal Remover, remove and DISCARD the positive crankcase ventilation tube seal (1).
