Supercharger Cleaning and Inspection
WARNING: This page is about a different variant/trim than selected.
- NOTE:
The Supercharger Intercoolers and fasteners are not serviceable and are not to be tampered with or removed at any time for any reason.

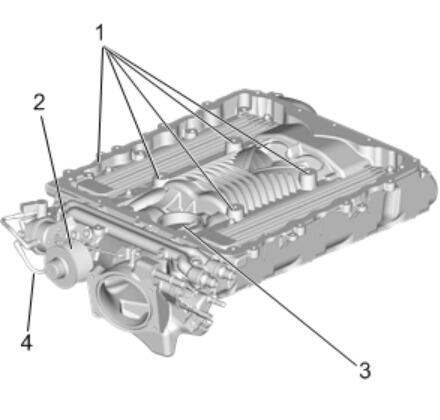

Inspect the supercharger for the following:
- Damaged seal surfaces (1)
- Worn or damaged belt pulley grooves (2)
- Rotate the pulley of the supercharger by hand. The pulley and rotors should rotate freely with no binding.
- Operate the boost bypass valve (3) by hand. The bypass valve should operate within the full range of motion with no sticking or binding.
- Inspect the tubes (4) for any tears or cracking.
