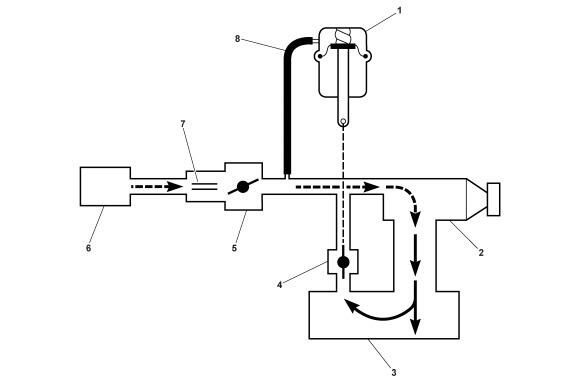

Bypass Valve Open
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:
Callouts in the following chart represent components shown in graphic above.
| Callout |
Component Name |
| 1 |
By-pass Valve Actuator |
| 2 |
Supercharger |
| 3 |
Intake Plenum |
| 4 |
By - pass Valve (normally closed) |
| 5 |
Throttle Body |
| 6 |
Air Cleaner |
| 7 |
MAF Sensor |
| 8 |
Inlet Vacuum Signal |
