Section 33 (Engine Mechanical - 3.6L - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Mechanical Wiring Schematics
>>

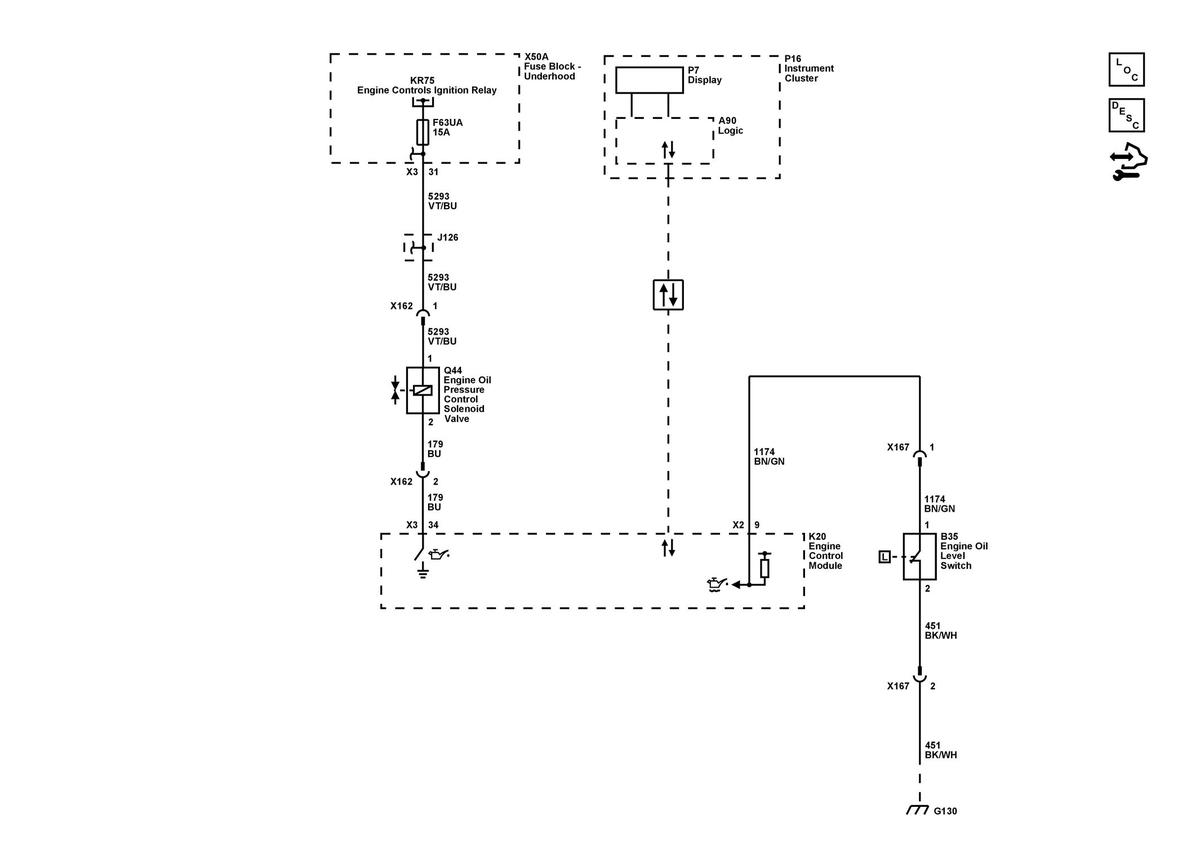

Engine Oil Level and Pressure Control
Engine Oil Level and Pressure Control
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
