Section 19 (Engine Controls And Fuel - 6.2L (LT1/LT4) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Schematics
>>

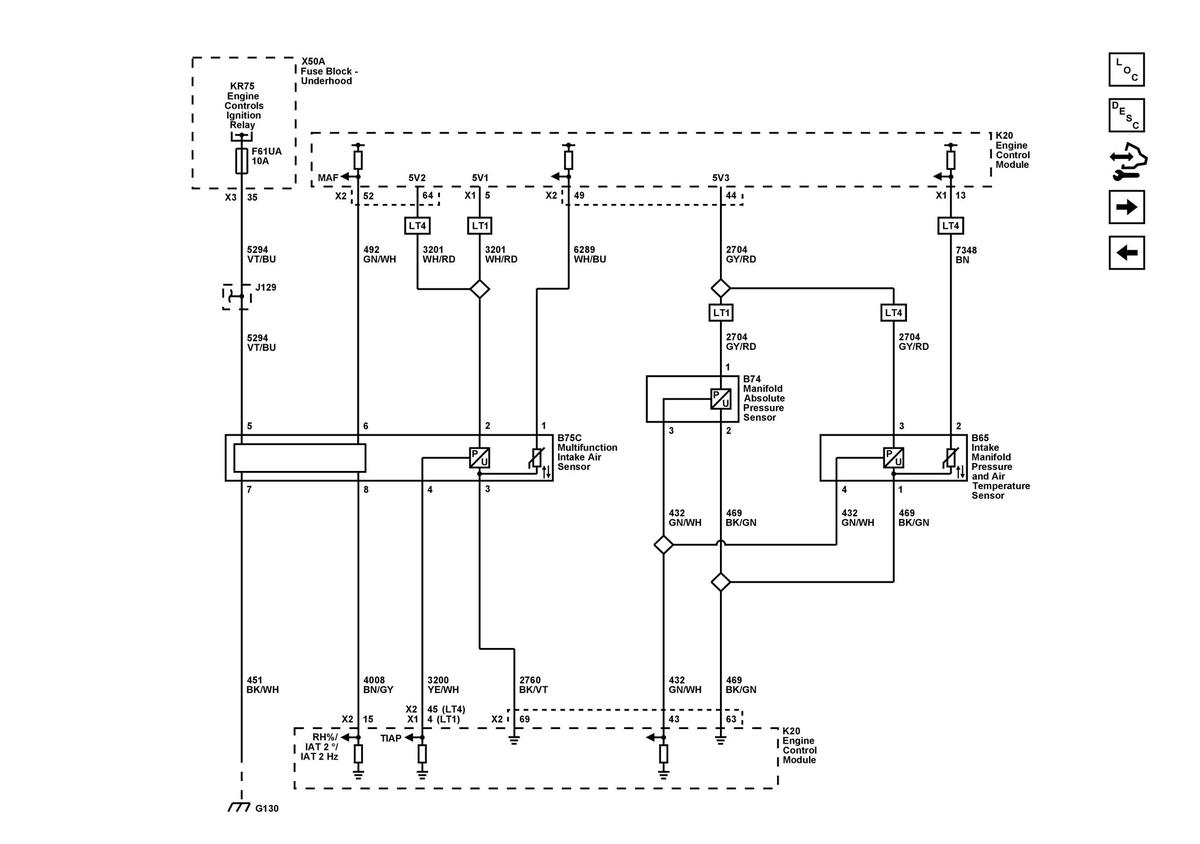

Engine Data Sensors - Pressure, and Temperature (1 of 2)
Engine Data Sensors - Pressure, and Temperature (1 of 2)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
