Section 19 (Engine Controls And Fuel - 6.2L (LT1/LT4) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Schematics
>>

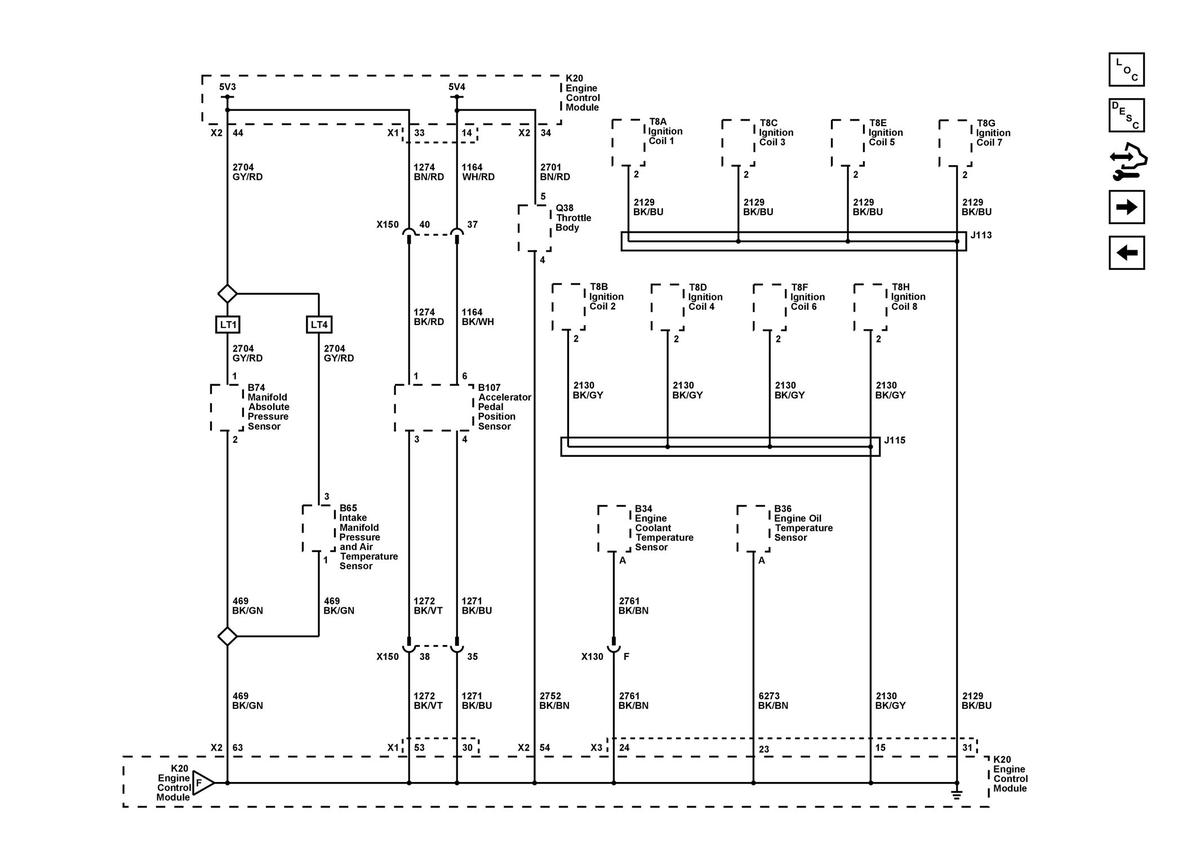

5V3, 5V4, and Low Reference Bus (3 of 3)
5V3, 5V4, and Low Reference Bus (3 of 3)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
