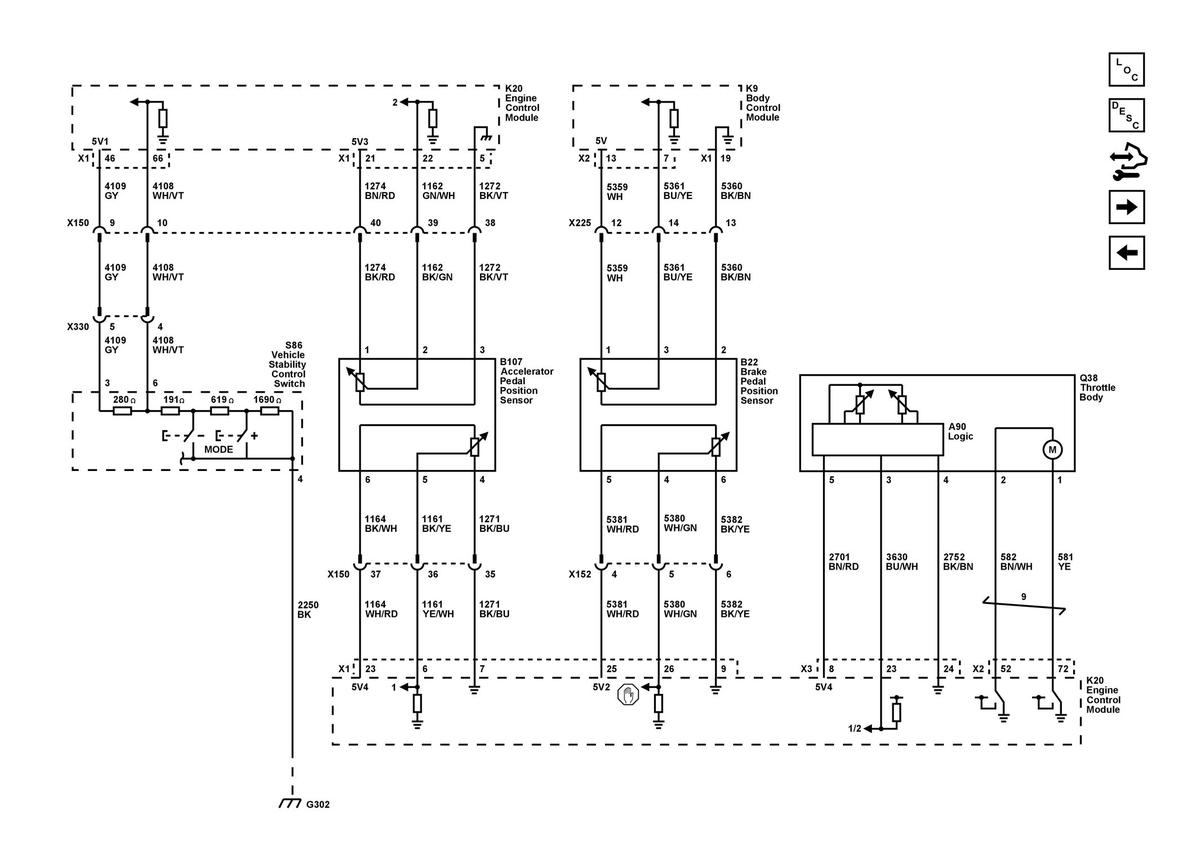

Engine Data Sensors - Throttle Controls and Override

WARNING: This page is about a different variant/trim than selected.
GM5735981Courtesy of GENERAL MOTORS COMPANY
