Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the valve rocker arm cover. Valve Rocker Arm Cover Installation - Right Side
  2. GM3397158Courtesy of GENERAL MOTORS COMPANY

    Connect spark wires at bank 2 ignition coils.

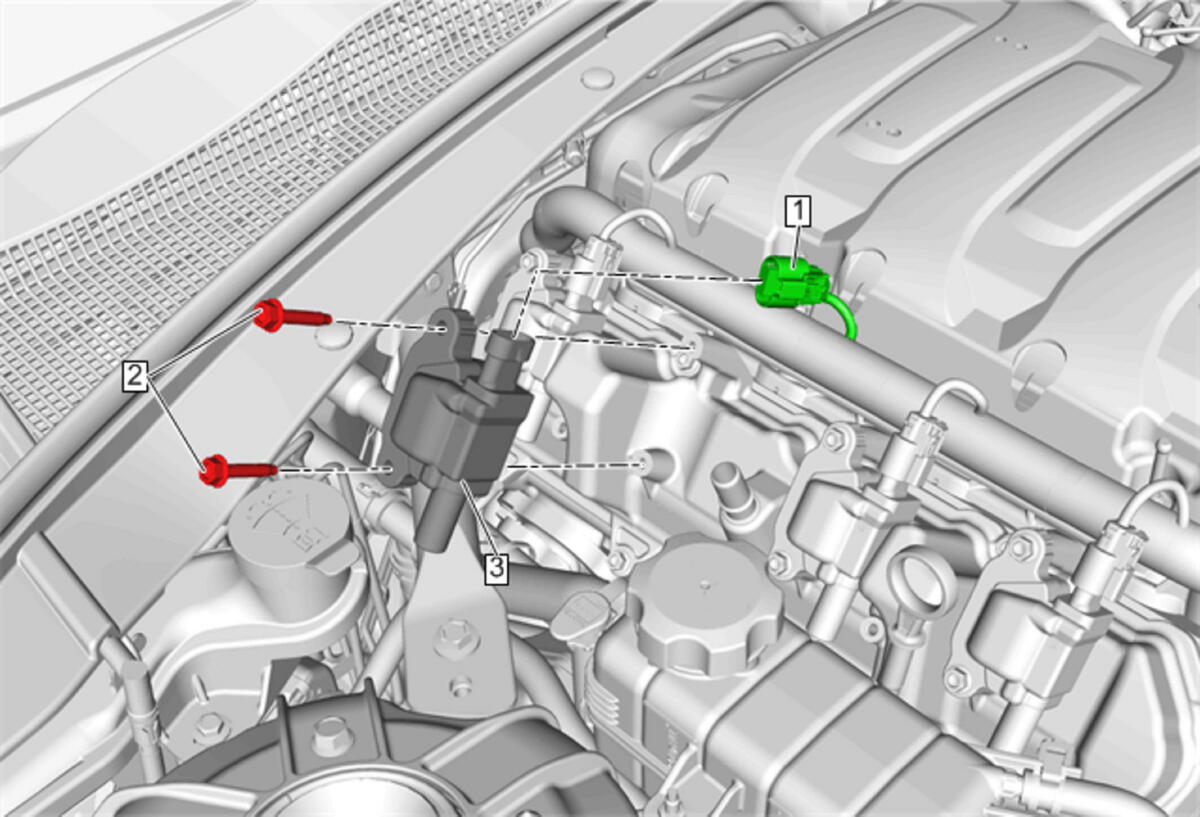

  3. GM4209960Courtesy of GENERAL MOTORS COMPANY

    Connect bank 2 ignition coil electrical connectors (1).

  4. Install the oil level indicator tube bracket bolt. Oil Level Indicator Tube Replacement (LT1)
  5. GM4210523Courtesy of GENERAL MOTORS COMPANY

    Install the right rocker arm cover insulator. Valve Rocker Arm Cover Insulator Replacement - Right Side (LT1)
