Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the valve rocker arm cover. Valve Rocker Arm Cover Installation - Left Side
  2. GM3397158Courtesy of GENERAL MOTORS COMPANY

    Connect spark wires at bank 2 ignition coils.

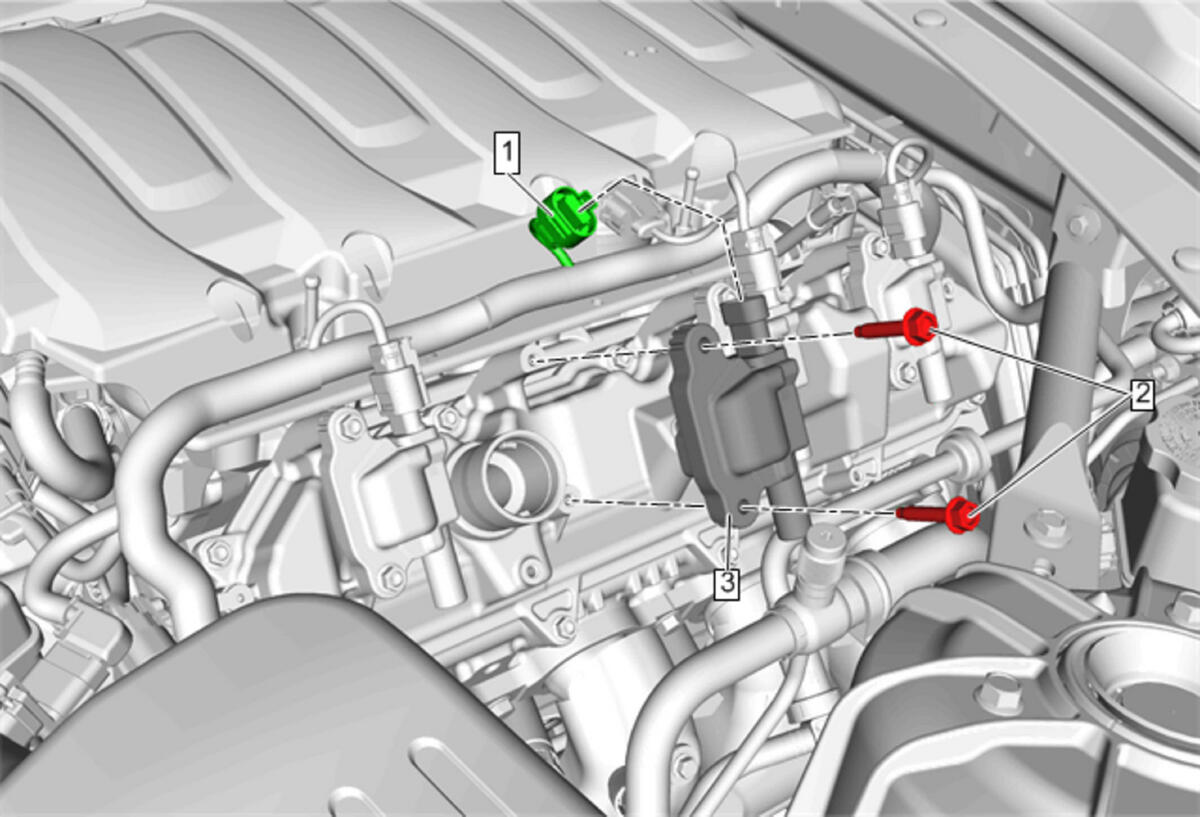

  3. GM4209949Courtesy of GENERAL MOTORS COMPANY

    Connect bank 2 ignition coil electrical connectors (1).

  4. GM4210158Courtesy of GENERAL MOTORS COMPANY

    Install the left rocker arm cover insulator. Valve Rocker Arm Cover Insulator Replacement - Left Side (LT1)
