Valve Rocker Arm Cover Disassemble - Left Side

WARNING: This page is about a different variant/trim than selected.

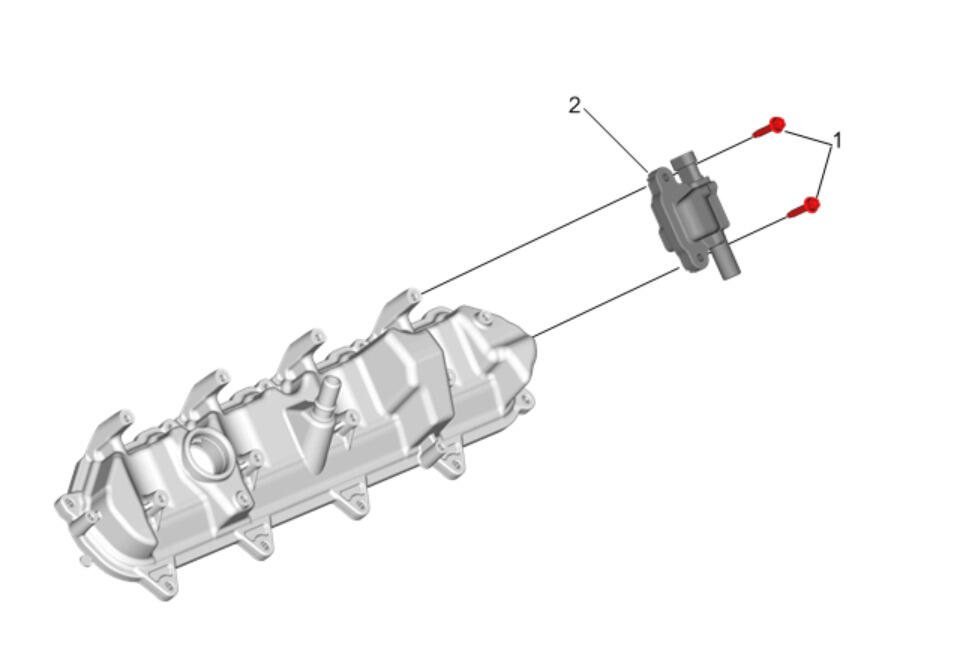

GM4044547Courtesy of GENERAL MOTORS COMPANY
Valve Rocker Arm Cover Disassemble - Left Side

Callout Component Name
1 Ignition Coil Bolt (Qty. 8)
2 Ignition Coil (Qty. 4)
