Single Use Fasteners and Components

WARNING: This page is about a different variant/trim than selected.

Throttle Body Seal

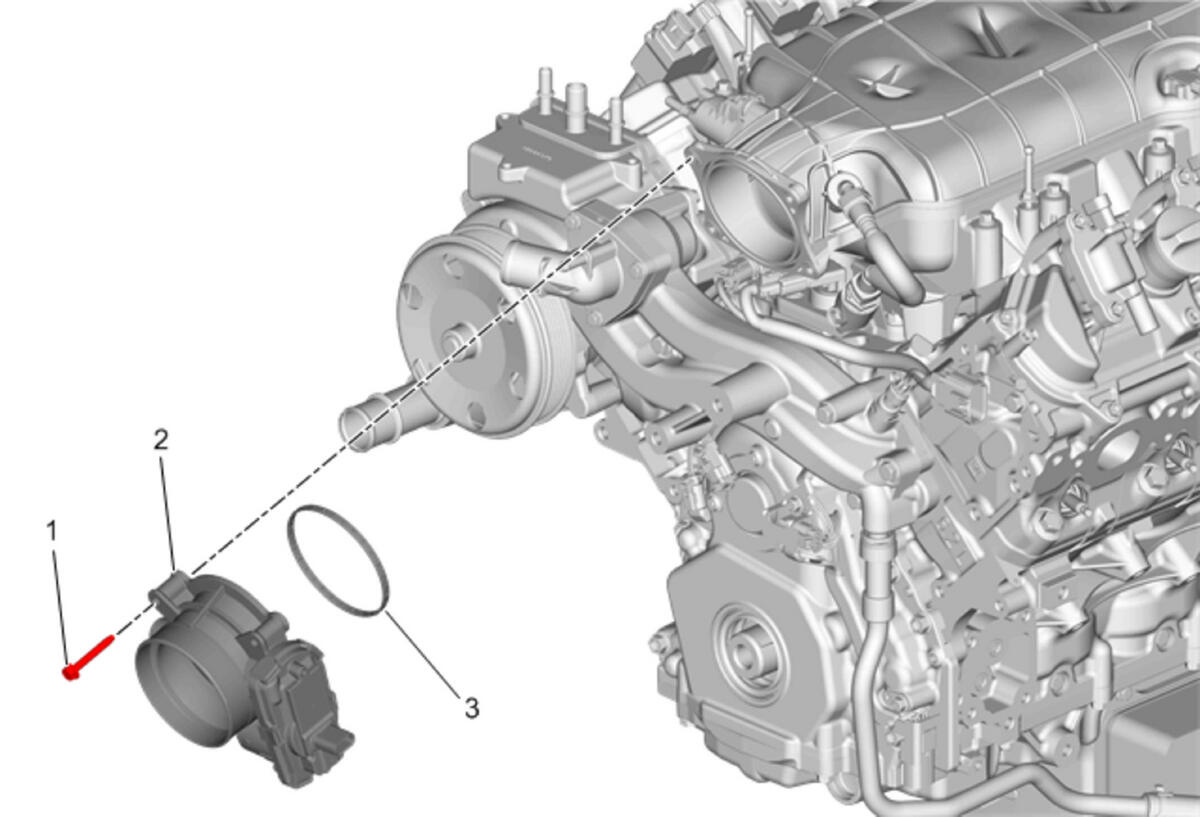

GM4140729Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Throttle Body Bolt
2 Throttle Body Assembly
3 Throttle Body Seal
NOTE:

Discard gasket, it is not reusable.


Refer to Replacing Engine Gaskets .
